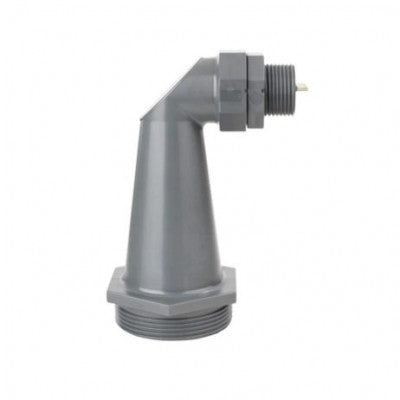

MaxBotix MB7851 Tank Sensor
Weather-resistant tank sensor with millimeter resolution and multiple output options.
- Resolution: Millimeter
- Detection Range: 50 mm to 5000 mm
- Read Rate: ~2Hz
- Outputs: Real-time analog voltage envelope, scaled analog voltage, serial communication (RS232 or TTL)
- Application: Tank level measurement, environments with acoustic and electrical noise, liquid distance measuring, industrial sensor 40C to +65C
Top Features:
- Millimeter resolution
- Short to long-distance detection
- Real-time analog voltage envelope
- Multiple output options
The MaxBotix MB7851 Tank Sensor is a low-cost liquid-level monitoring sensor utilizing ultrasonic technology for non-contact sensing. It is designed for easy use in applications requiring liquid-level detection, especially in containers like tanks, barrels, and bins. The sensor features a teaching function (available with serial communication) to train the sensor for accurate ranging even in the presence of obstructions like corrugation.
Factory calibrated for reliable long-range detection zones, the MB7851 offers noise-free distance readings with high-output acoustic power, continuous gain adjustment, automatic calibration, waveform analysis, and noise rejection algorithms. It operates effectively in environments with acoustic and electrical noise sources.
- Real-time auto sensitivity adjustment and noise rejection
- High acoustic power output
- Precise narrow beam characteristics
- 3V to 5.5V supply with low average current draw
- 1.95Hz refresh rate
- All interfaces active simultaneously
- RS232/TTL Serial, Analog voltage output
- Sensor operates at 42KHz
Package Includes:
- 1 x MaxBotix MB7851 High-Performance Tank Level Ultrasonic Sensor
*Images are for illustration only; actual product may vary.
