MAX9814 High-Performance Microphone AGC Amplifier
An advanced audio solution with Automatic Gain Control for exceptional sound clarity.
- Supply Voltage: 2.7v-5.5v @ 3mA current
- Output: 2Vpp on 1.25V bias
- Frequency Response: 20Hz - 20 KHz
- Programmable Attack and Release Ratio
- Automatic gain, selectable max: 40dB, 50dB, or 60dB
- Low Input-Referred Noise Density: 30nV
- Low THD: 0.04% (typical)
Top Features:
- Automatic Gain Control (AGC)
- Programmable action time
- Programmable action and release time ratio
- Low-power shutdown mode

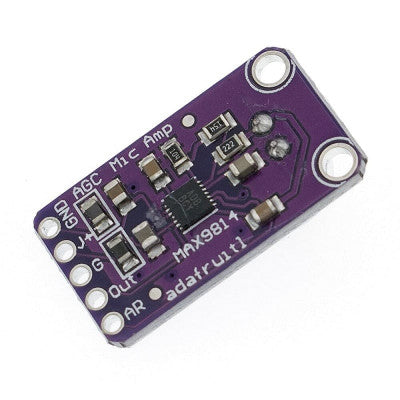

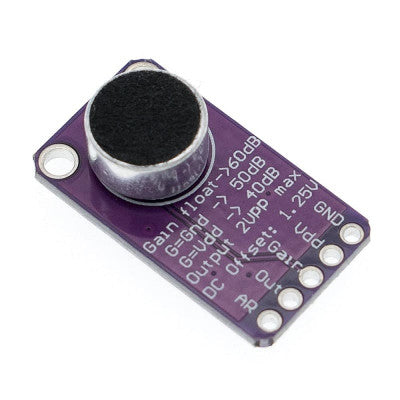

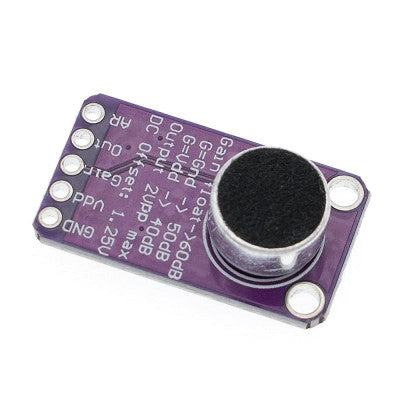

The MAX9814 High-Performance Microphone AGC Amplifier, model CMA-4544PF-W, is a compact module equipped with the MAX9814 amplifier chip. It excels in capturing and amplifying sound with exceptional clarity, making it suitable for diverse applications from voice recording to audio surveillance. The AGC system dynamically adjusts the amplification level to ensure consistent and high-quality output. This module offers a reliable, compact, and efficient solution for integrating superior audio performance into electronic projects and devices.

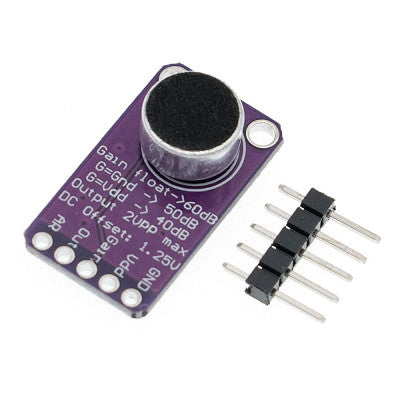

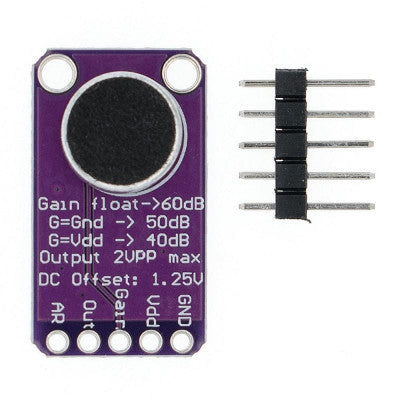

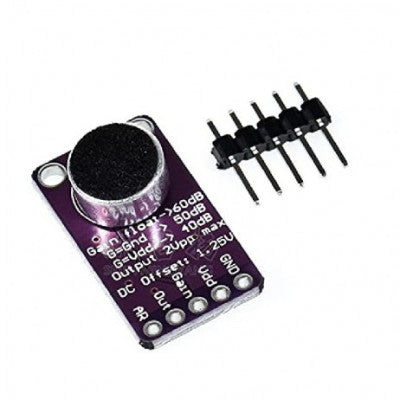

Package Includes: 1 x MAX9814 High-Performance Microphone AGC Amplifier Module CMA-4544PF-W
* Images are for illustration only; actual product may vary.
