MAX6675 Module with K Type Thermocouple Sensor
Accurate temperature measurement with MAX6675 IC and K-Type thermocouple sensor
- Resolution: 12-bit
- Temperature Range: 0°C to 1024°C
- Resolution: 0.25°C
- Interface: SPI compatible
- Thermocouple Type: K-Type
- Max Sensor Temperature: 450°C
- Probe Diameter: 4.5mm
- Probe Length: ~100cm
Top Features:
- Integrated cold junction compensation circuit
- 12-bit digital temperature conversion
- Embedded thermocouple break detection
- Simple SPI serial output

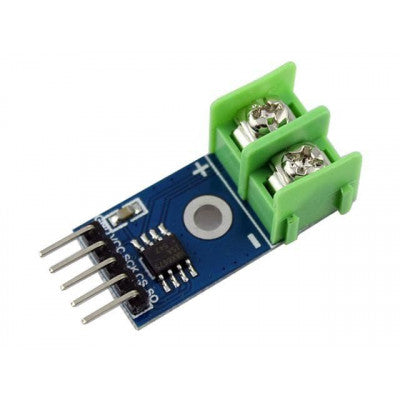

This MAX6675 Module with K Type Thermocouple Sensor utilizes the Maxim MAX6675 K-Thermocouple to digital converter IC to provide a microcontroller compatible digital serial interface. The module offers accurate temperature readings from 0°C to 1024°C, with a resolution of 0.25°C. It features screw terminals for easy connection to the thermocouple's spade connectors and a 5-pin standard 0.1" header for interfacing with microcontrollers like Arduino.
The included K-Type thermocouple sensor has a diameter of 4.5mm and a 6mm threaded mounting bolt. The total length of the sensor, including the cable and spade connectors, is approximately 100cm. With high impedance differential inputs and thermocouple break detection, this module ensures reliable temperature measurements.
For added convenience, the module also includes a thermocouple break detection circuitry and can withstand up to 2000V of ESD signal. Whether you need precise temperature measurements for industrial or DIY projects, this MAX6675 Module with K Type Thermocouple Sensor is a reliable choice.
Images are for illustration only; actual product may vary.
