MAX232E RS-232 Transceiver
High ESD Protection and Single +5V Supply Operation
- No. Of RS-232 Drivers: 2
- No. Of RS-232 Receivers: 2
- Receivers Active In Shutdown: 0
- No. Of External Capacitors (µf): 4(1)
- Low-Power Shutdown: No
- TTL Tristate: No
- Pack/Unit: 1
Top Features:
- Saves Board Space
- Integrated High ±15kV ESD Protection
- Integrated Charge Pump Circuitry
- Single Supply Operation From +5V Supply
The MAX232E is part of the RS-232 and V.28 transceiver family, offering high ±15kV ESD HBM protection and integrated charge pump circuitry for single +5V supply operation. The drivers and receivers meet EIA/TIA232E and CCITT V.28 specifications at data rates up to 120kbps. Available in 16-pin TSSOP, narrow SO, wide SO, and DIP packages.
The various combinations of features are detailed in the Selector Guide. For more information, refer to the MAX232 IC Datasheet.

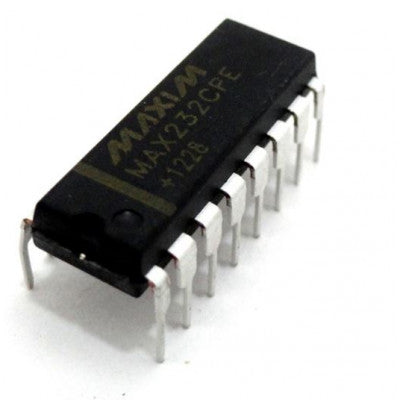

* Images are for illustration only; actual product may vary.
