MAX202E-MAX213E, MAX232E, and MAX241E RS-232 Transceivers
A family of RS-232 and V.28 transceivers with high ±15kV ESD HBM protection.
- Operating Voltage: +5V
- ESD Protection: ±15kV HBM
- Data Rate: Up to 120kbps
- Package: 16-pin TSSOP, narrow SO, wide SO, DIP packages
-
Features:
- Saves board space
- Integrated charge pump circuitry
- Single supply operation
- Integrated ESD protection
The MAX202E-MAX213E, MAX232E, and MAX241E series of transceivers are designed to meet EIA/TIA232E and CCITT V.28 specifications. The MAX202E and MAX232E variants are available in various package types, while the MAX203E and MAX205E offer additional features such as no need for external charge-pump capacitors.
Applications:
- Battery-Powered Equipment
- Hand-Held Equipment
- Portable Diagnostics Equipment

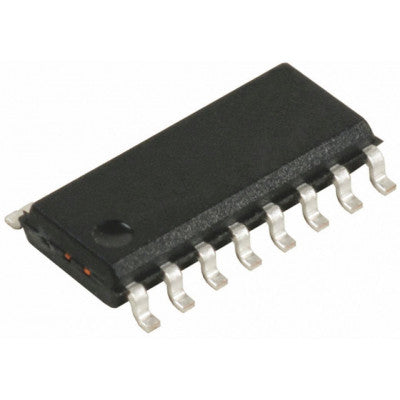

The MAX202E package includes 1 x MAX202E in SMD package, an RS-232 Interface IC.
Need more details or interested in bulk pricing? Reach out to our sales team directly at sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
