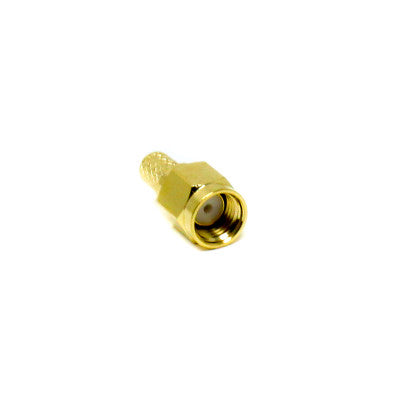

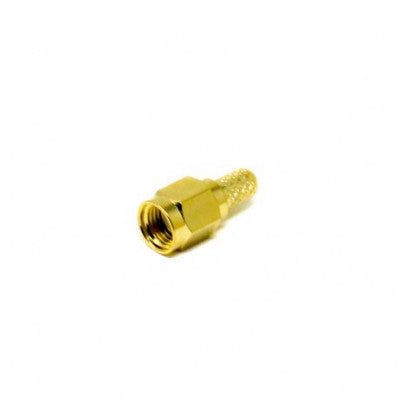

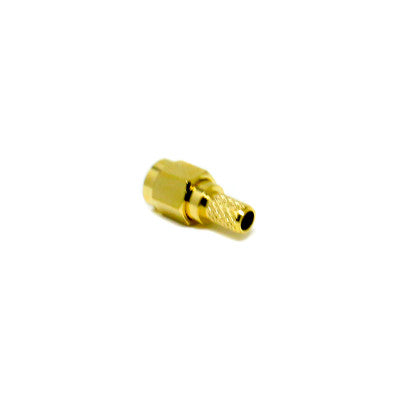

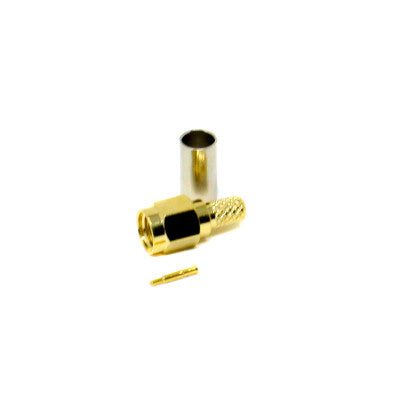

Male SMA Solder Type Straight Nickel Plating Connector
Designed for terminating industry-standard 50 ohm and 75-ohm cables with durability and precision.
- Brand: ElecBee
- Orientation: Straight
- Gender: Male
- Mounting Type: Cable
- Termination Style: Solder Type
- Mounting Feature: None
- Function: Other
- Polarity: Standard
- Body Material: Copper
- Body Plating: Nickel Plating
- Impedance: 50 ohms
- Shield Termination: Solder
Top Features:
- 50 Ohm Male Connector
- Solder Type for Cable
- Straight/180 Design
- Excellent performance up to 18GHz
These connectors are suitable for various applications including Aerospace and Defense, Medical, Commercial Vehicle, Telecommunications, Data/Communications, and Industrial sectors. They offer low reflection and high security with a thread type coupling mechanism.

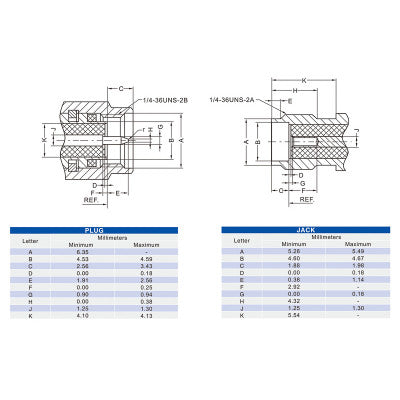

Specifications:
- Impedance: 50 ohm
- Frequency Range: 0~6 GHz
- VSWR: Straight type 1.3max / R/A type 1.5max
- Dielectric Withstanding Voltage: 1000 V rmsmin for RG142, RG405; 750 V rms min. for RG316, RG402; 500v rms min. for RG178
- Working Voltage: 500 V rms max. for RG142, RG405; 375 V rms max. for RG316, RG402; 170 V rms max. for RG178
- Center Contact Resistance: 6.0 m (Milliohms max.)
- Outer Contact Resistance: 2.0 m (Milliohms max.)
- Insulation Resistance: 5 x 10 m (Megohms min.)
- Coupling: 1/4-36 thread
- Contact Retention: 15 in-lbs min.
- Coupling nut torque: 30 in-lbs. min.
- Durability (mating): 500 cycles (For Beryllium Copper Contact)
- Temperature Range: -55C ~ +155C
- Vibration: MIL-STD-202 Meth.204
- Corrosion resistance: MIL-STD-202 Meth. 101
Package Includes: 1 x Male SMA Solder Type Straight Nickel Plating Connector For Coaxial Cable
* Images are for illustration only; actual product may vary.
