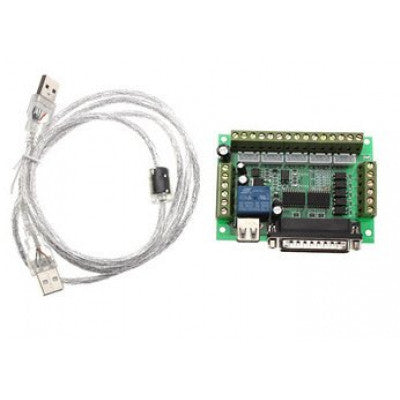

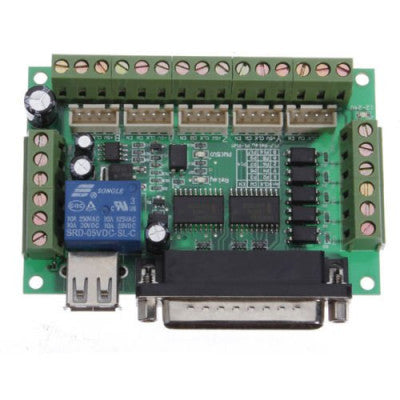

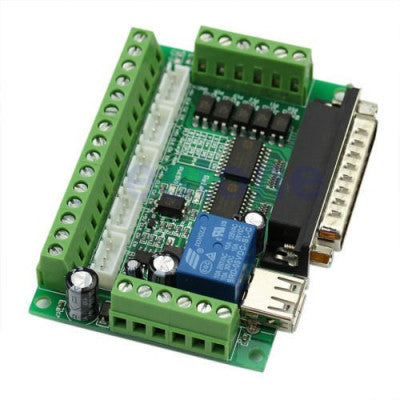

MACH3 Interface Board CNC 5 Axis with Optocoupler
Latest upgrade 5 axis breakout board for CNC single axis stepper driver controllers.
- Input Power: Through PC USB port or 12-24V power supply
- Compatible Stepper Motor Driver: Max 5, 2-phase Microstep controllers
- Driver type: Pulse and Direction signal control
- Weight (gm): 78
- Dimensions (mm) LxWxH: 90 x 70 x 20
- Cable Length: 1.4 meter
Features:
- Supports up to 5-axis stepper motor driver controllers
- Compatible with MACH3, Linux CNC (EMC2) etc.
- USB power supply with separate peripherals power phase
- Isolated signals for computer security

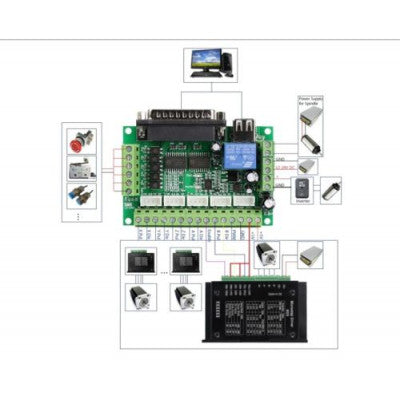

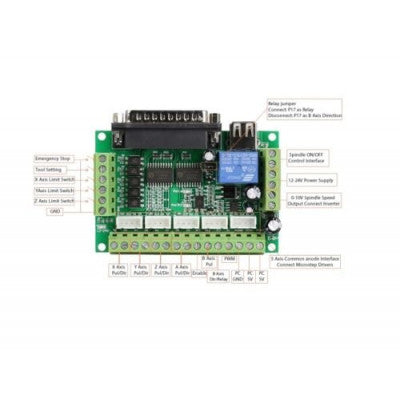

The MACH3 Interface Board is specially designed for CNC single axis 2-phase stepper driver controllers like TB6560, M542, M542H, MA860H, and more. It allows direct control of 1-5 single axis stepper driver controllers via PC using MACH3, EMC2, KCAM4, etc. The board features optocoupler isolated 0-10V analog voltage output for spindle speed control and 17 ports for various connections.
Note: The cable color (black or white) will be shipped randomly.
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
Images are for illustration only; actual product may vary.
