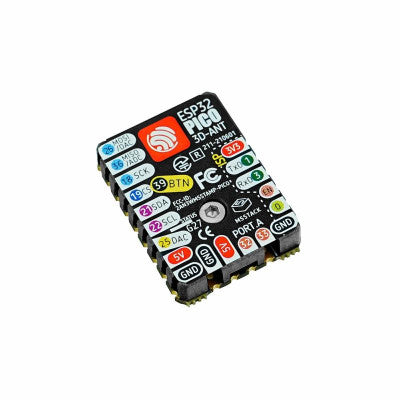

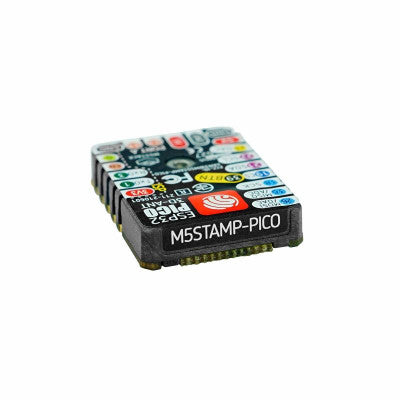

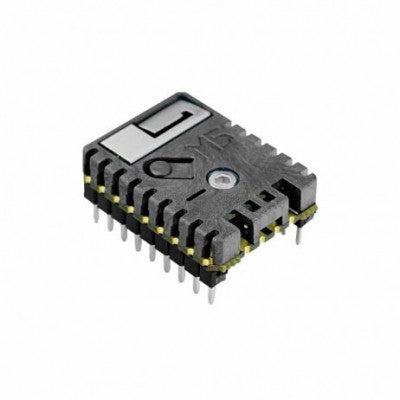

M5 Stack STAMP-PICO Mate
An ultra-compact ESP32-PICO-D4 module with versatile installation options
- Chip-set: ESP32-PICO-D4 (2.4GHz Wi-Fi and Bluetooth dual mode)
- Support: UIFlow graphical programming
- Multi-IO pinout: Support multiple application forms (SMT, DIP, fly-by-wire)
- Integrated: Programmable RGB LEDs and buttons
- Miniature module

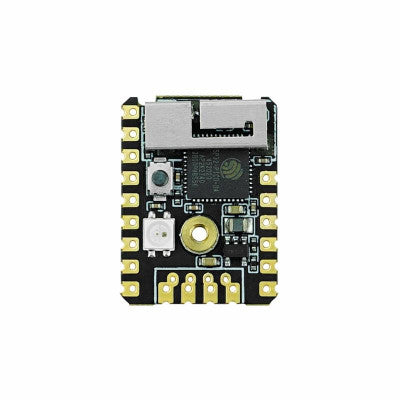

M5 Stack STAMP-PICO Mate features an ultra-compact design with two low-power Xtensa 32-bit LX6 microprocessors at 240MHz on a PCB as tiny and delicate as a postage stamp. It is ideal for any space-constrained or battery-powered devices such as wearables, medical devices, sensors, and other IoT devices.

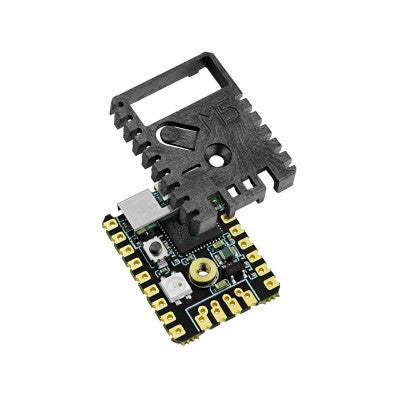

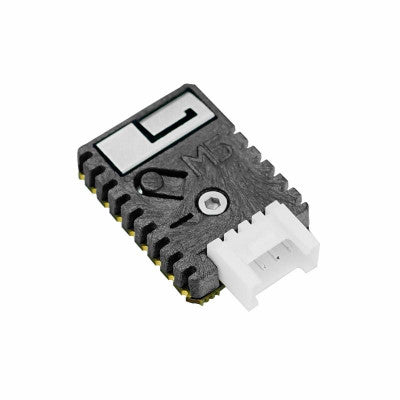

MULTIFORM: 5 options of installation, means endless possibilities! (SMT, DIP, flywire, grove interface), with a high-temperature resistant plastic shell, 3D antenna and components can be better protected.
LOW-CODE DEVELOPMENT: STAMP-PICO supports UIFlow graphical programming platform, scripting-free, cloud push; and fully compatible with Arduino, MicroPython, ESP32-IDF, and other mainstream development platforms to quickly build various applications.

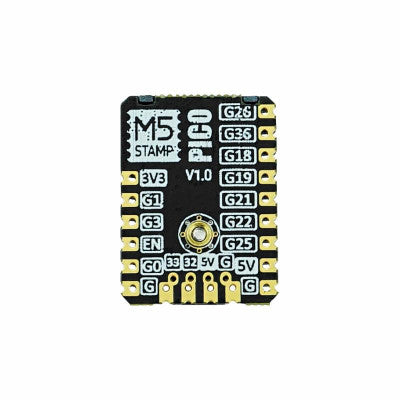

HIGH INTEGRATION: STAMP-PICO contains 5V->3.3V DC/DC port, GPIOx12, programmable RGB light x1, button x1, finely tuned RF circuit, providing stable and reliable wireless communication.
STRONG EXPANDABILITY: Easy access to M5Stacks hardware and software ecology system: a wealth of sensors, actuators, functional modules, and accessories to choose from, Extremely fast adaptation.
Specifications:
- Master Control Resource: ESP32-PICO-D4
- Flash: 4MB
- Input Voltage: 5V @ 500mA
- Power consumption: Normal stand by: 5V@29mA, WIFI STA mode: 5V@60mA, Bluetooth mode data sending status: 5V@84mA, Deep-sleep mode: 5V@0.35mA
- Wireless communication distance: AP Mode: 16m, BLE Mode: 110m, Class Bluetooth Mode: 90m
- UI: Programmable physical keys x 1, Programmable RGB LED (SK6812) x 1
- Antenna Type: 2.4G 3D Antenna
- WiFi: 802.11 b/g/n (up to 150 Mbps for 802.11n), spectrum range: 2.4 GHz ~ 2.5 GHz

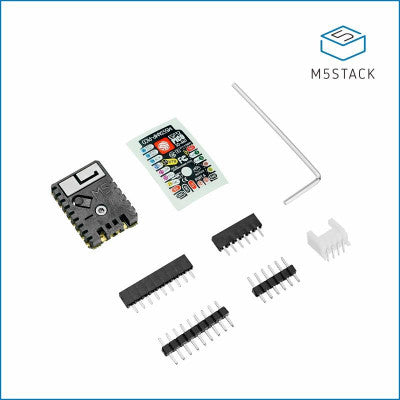

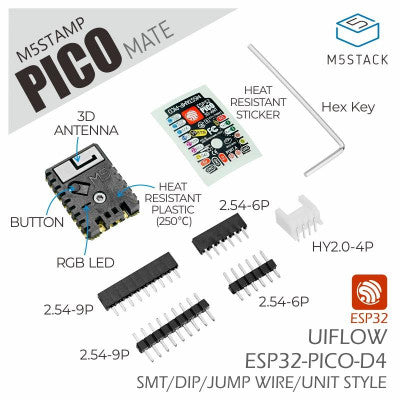

Package Includes:
- 1 x M5Stamp Pico
- 1 x Sticker
- 4 x Pin Headers
- 1 x 90 Grove Connector
- 1 x Hex Key
*Images are for illustration only; actual product may vary.
