PIR Motion Sensor
A passive pyroelectric infrared detector for detecting human body infrared radiation.
- Latency Time: 2 Sec
- Cable Length (cm): 20
- Sensing Range: < 100
- Quiescent Current: < 60uA
- Operating Temperature (C): -20 to 80
- Length (mm): 32
- Width (mm): 24
- Height (mm): 12
- Weight (gm): 5
Top Features:
- Detects distance up to 500cm
- 2-second latency time
- Sensing range less than 100
- Supports UIFlow and Arduino
PIR is a human body infrared unit that detects infrared radiation emitted and reflected by humans or objects. It has a 2-second delay time and communicates with M5Core via GROVE B. Ideal for human body induction lamps, security products, and automatic induction appliance settings.
Package Includes:

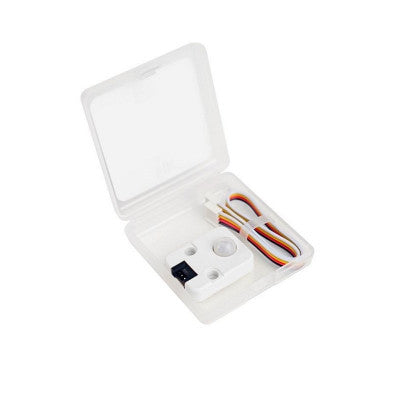

- 1x M5 Stack PIR Motion Sensor
- 1x GROVE Cable (20cm)
*Images are for illustration only; actual product may vary.
