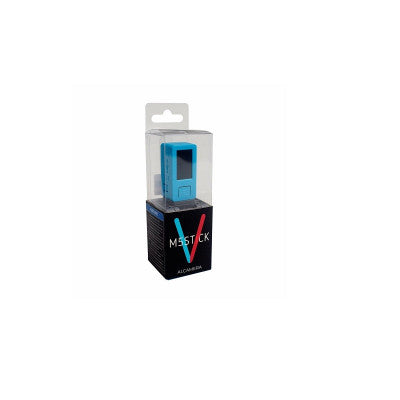

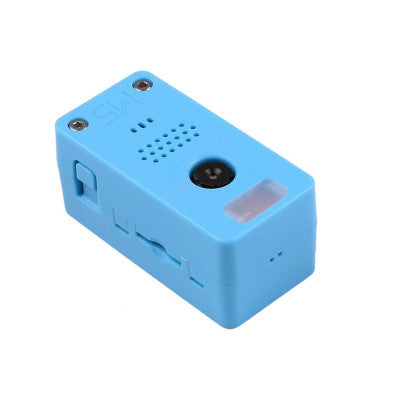

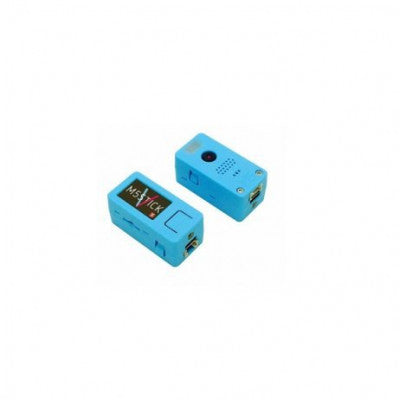

M5 StickV K210 AI Camera (Without Wifi)
The new AIoT Camera powered by Kendryte K210
- Power input: 5V @ 500mA
- SRAM: 8 MB
- Flash: 16 MB
- Port: Type C
- GROVE: I2C+I/0+UART
- IPS screen: 1.14 TFT, 135*240, ST7789
- Camera: OV7740 FOV55deg
- Battery Required: 200mAh
- Length (mm): 48
- Width (mm): 24
- Height (mm): 22
- Weight (gm): 23
Top Features:
- Dual-Core 64-bit RISC-V CPU
- Neural Network Processor (KPU)
- MicroPython Support
- Firmware encryption support
The M5 StickV K210 AI Camera is a powerful AIoT camera featuring the Kendryte K210 edge computing SoC with dual-core 64bit RISC-V CPU and advanced neural network processor. It is equipped with machine vision capabilities, an OmniVision OV7740 image sensor, and OmniPixel3-HS technology for optimum low light sensitivity. The camera supports various vision identification capabilities and additional hardware resources such as a speaker, IPS screen, 6-axis IMU, and a 200mAh Li-po battery.
The M5 StickV is capable of performing convolutional neural network calculations at low power consumption, making it an excellent zero-threshold machine vision embedded solution. It supports MicroPython, allowing for concise code when programming with the M5 StickV.
The camera can be used for applications such as face recognition/detection, object detection/classification, real-time target size and coordinate acquisition, real-time target type detection, shape recognition, video/display, and game simulation.
Power switch operation:
Power on: Long press power button for 2 seconds
Power off: Short press power button for 6 seconds
Case Material: PC + ABS
* Images are for illustration only; actual product may vary.
