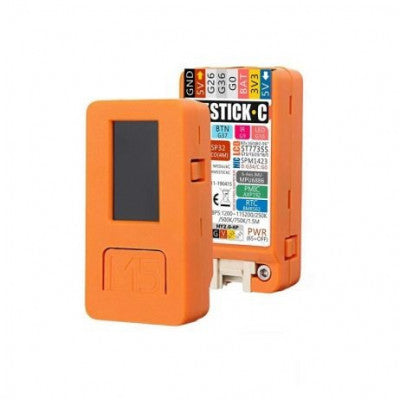

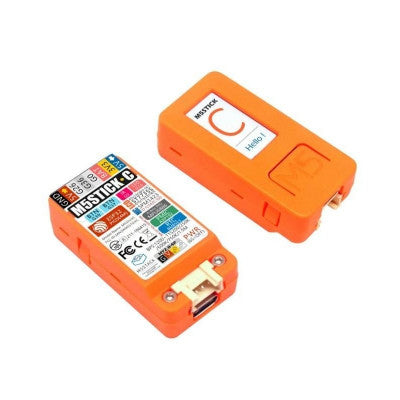

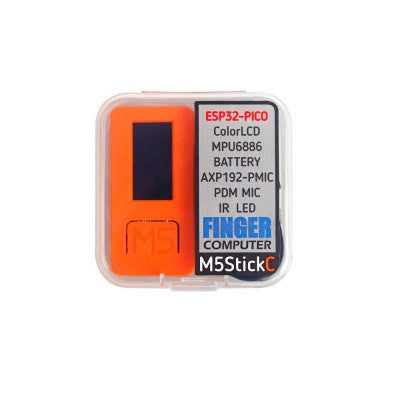

M5 StickC
A mini M5Stack powered by ESP32, perfect for IoT development
- Flash Memory: 4 MB
- Operating Voltage (VDC): 5
- Operating Current (A): 0.5
- Cable Length (Meter): 1
- Material: Plastic
- Interface: GROVE(I2C+I/0+UART) x 1, TypeC x 1
- LCD Screen: 0.96 inch, 80*160 Colorful TFT LCD, ST7735S
- MEMS: MPU6886
- MIC: SPW2430
- RTC: BM8563
- PMU: AXP192
- Battery: Lithium Battery 95 mAh @ 3.7V

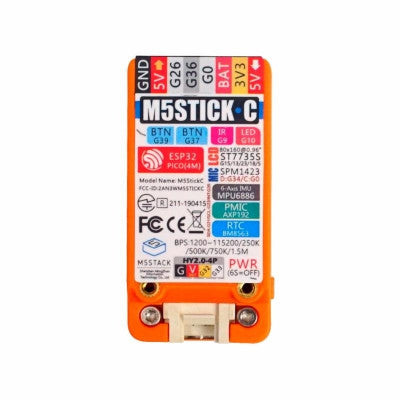

- PIN Port: G0, G26, G36
- Operating Temperature (C): 0 to 40
- Length (mm): 48
- Width (mm): 26
- Height (mm): 14
- Weight (gm): 16
Top Features:
- ESP32-based
- Built-in 6-Axis IMU
- Red LED & IR transmitter
- Microphone & Buttons
M5 StickC is a portable, easy-to-use, open-source IoT development board that can bring your ideas to life quickly. It is a core device in the M5Stack product series with a growing hardware and software ecosystem. With compatible modules, units, and open-source code, it's perfect for IoT prototyping, wearable devices, STEM education, and DIY projects.

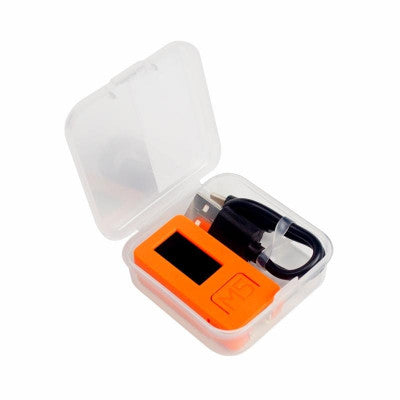

Package Includes: 1 x M5StickC ESP32-PICO Mini IoT Development Kit, 1 x Type-C USB Cable (1m)
* Images are for illustration only; actual product may vary.
