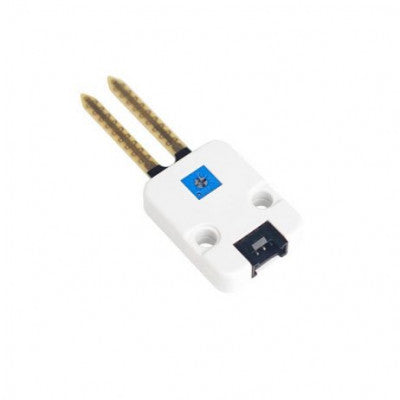

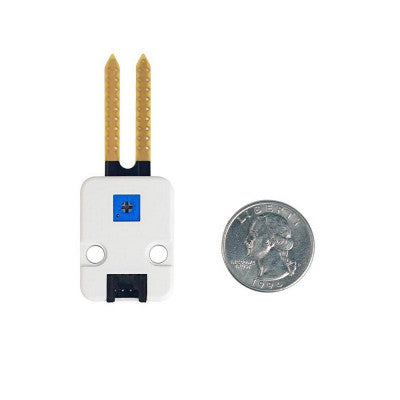

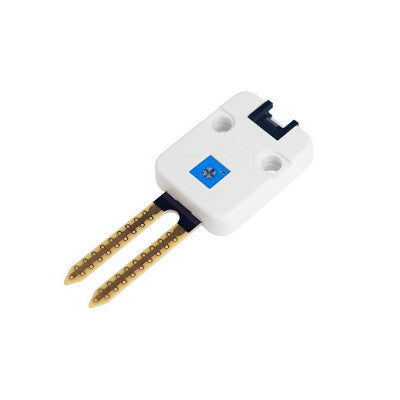

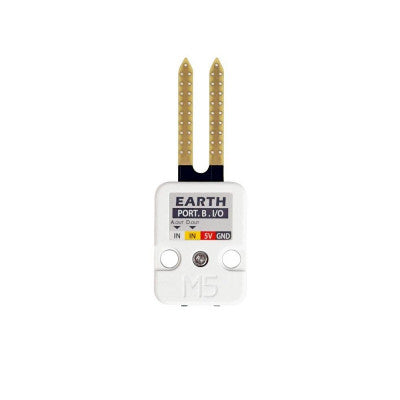

Earth Moisture Sensor Unit
A soil moisture sensor for measuring moisture in soil and similar materials.
- Operating Voltage: 5 VDC
- Output Format: Analog and Digital
- Cable Length: 20 cm
- Length: 64 mm
- Width: 24 mm
- Height: 8 mm
- Weight: 5 gm
Features:
- Adjustable threshold with 10K resistor
- Analog & Digital output
- GROVE interface, supports UIFlow and Arduino
- Two Lego-compatible holes
This Earth Moisture Sensor unit from M5 Stack is a Soil Moisture Sensor for measuring the moisture in the soil and similar materials. It is compatible with M5 Cores and communicates with the M5 Core with the grove cable. The soil moisture sensor is pretty straightforward to use. The two large exposed pads function as probes for the sensor, together acting as a variable resistor. The higher moisture that is in the soil means the better the conductivity between the two so that the sensor will result in lower resistance, and a higher SIG out. You can read the moisture in the soil by ADC. Inside this Unit, we put an extra potentiometer to change the measurement range.
Applications: Potted Soil Moisture Monitoring, Automatic Plant Watering System, IoT Enabled Smart Garden

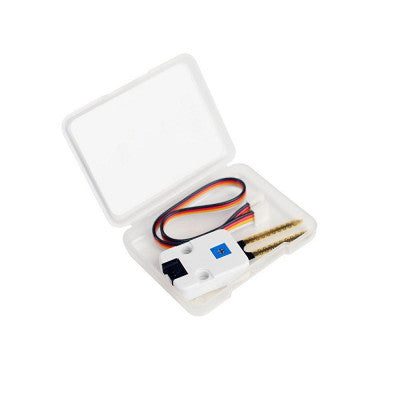

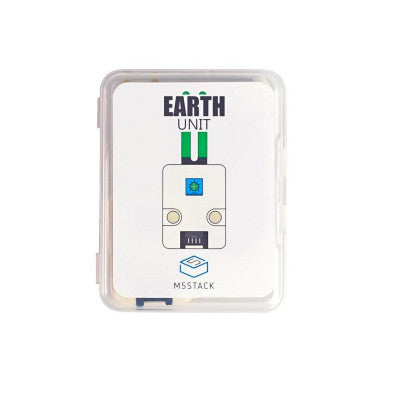

Package Includes: 1 x Earth Moisture Sensor Unit with Analog and Digital Output, 1 x GROVE Cable
