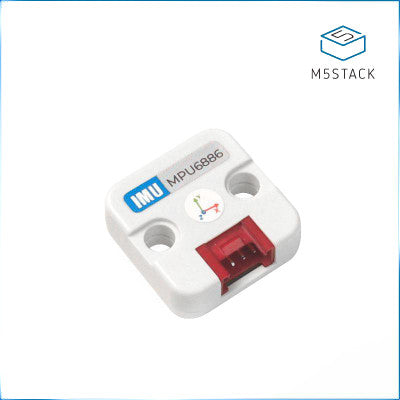

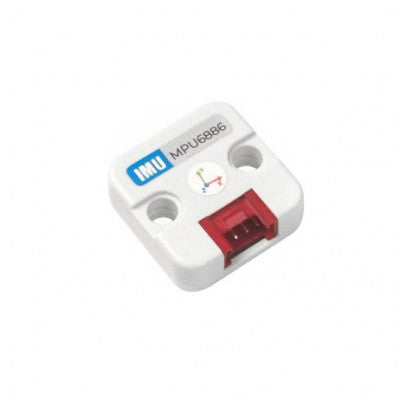

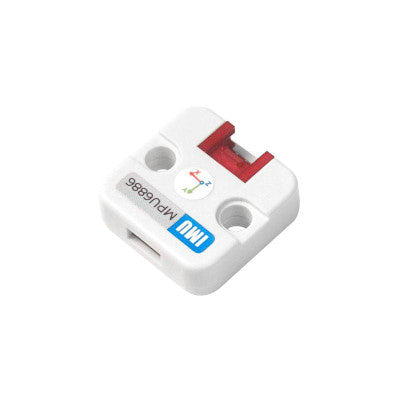

M5 Stack 6-Axis IMU Unit (MPU6886)
A 6-axis attitude sensor for real-time tilt angle and acceleration calculation.

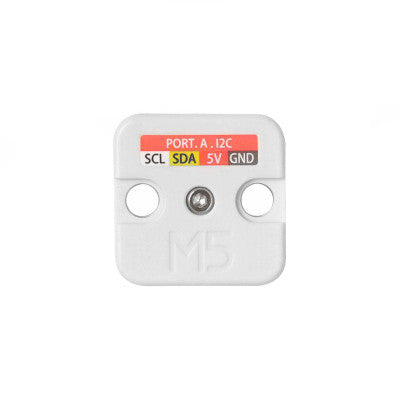

- Communication protocol: I2C 0x68
- Accelerometer range: 2g, 4g, 8g, or 16g
- Accelerometer noise: 100 g/Hz
- Gyroscope range: 250, 500, 1000, or 2000 degrees per second
- Gyroscope sensitivity error: 1%
- Gyroscope noise: 4 mdps/Hz
- Working voltage: 1.71V - 3.45V
- Length (mm): 24
- Width (mm): 24
- Height (mm): 13
- Weight (gm): 4
Top Features:
- 3-axis gravity accelerometer and 3-axis gyroscope
- On-chip temperature sensor
- 1KB FIFO
- Support low power consumption
The M5 Stack 6-Axis IMU Unit (MPU6886) is a versatile sensor unit with a 6-axis attitude sensor that includes a 3-axis gravity accelerometer and a 3-axis gyroscope. It can accurately calculate tilt angle and acceleration in real-time. The chip features an mpu6886 with a 16-bit ADC, built-in programmable digital filter, and on-chip temperature sensor. It communicates with the host computer via an I2C interface (address: 0x68) and supports low-power mode.
Applications for this unit include wearable devices, motion tracking, UAV attitude determination, and more. It is compatible with development platforms such as Arduino and uiflow (blocky, python). Additionally, it features 2 LEGO compatible holes for easy integration into various projects.

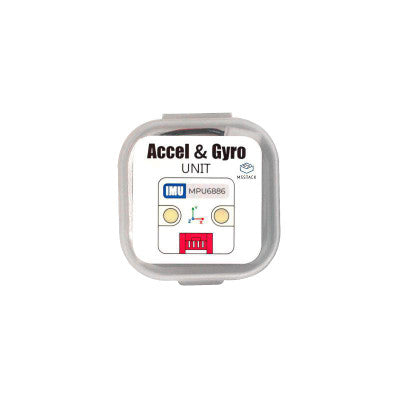

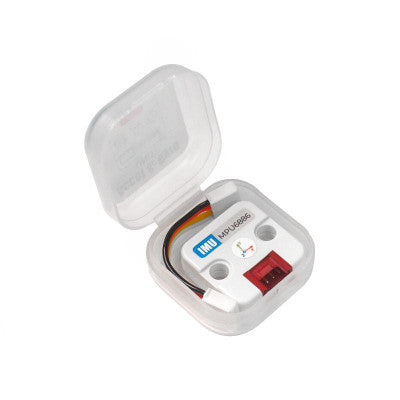

Package Includes:
- 1 x M5 Stack 6-Axis IMU Unit (MPU6886)
- 1 x Grove Cable (5cm)
*Images are for illustration only; actual product may vary.
