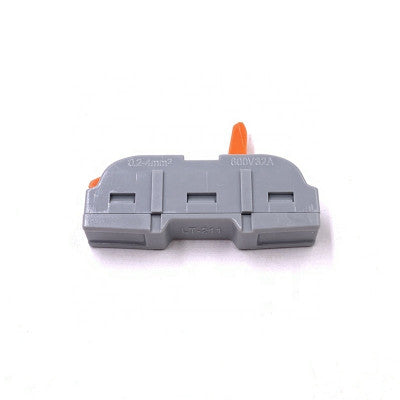

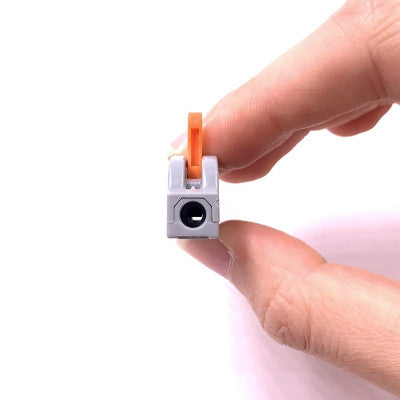

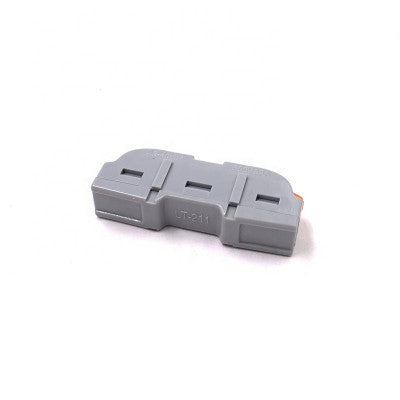

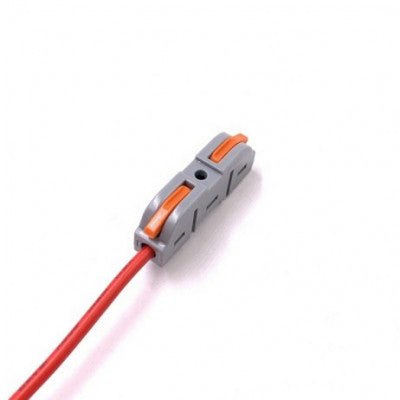

PCT-211(SPL-1) 0.08-4mm2 Single Pole Wire Connector Terminal Block
Compact splicing connector for easy and efficient cable connections
- Model: LT-211(SPL-1)
- Rated Voltage (V): 600
- Rated Current (A): 20
- Color: Grey+Orange
- Operating Temperature Range (C): -20 to 85
Features:
- High-grade Insulative Nylon Material
- Strong Spring Locking Lever
- Nickel Plated Metal Point Inside
- Good Temperature Resistance
The PCT series compact splicing connectors make connecting easy and save time and money in distribution or junction boxes. The compact body allows for connecting in narrow spaces and enables high wiring density. This PCT-211(SPL-1) Single Pole Wire Connector Terminal Block with Spring Lock Lever is suitable for cable connections. It can handle single-strand hardwire with 0.08mm to 4mm2 area or soft wire with 0.08mm to 4.0mm2 area (or AWG28 to AWG12). The connector can tolerate a rated voltage of up to 600V with a peak electric current of 20A.
The package includes 1 x LT-211(SPL-1) Quick Connection Terminals that can be spliced.
*Images are for illustration only; actual product may vary.
