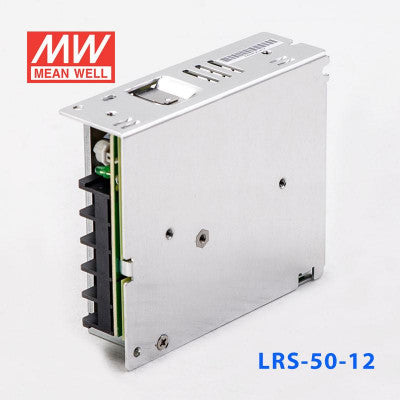

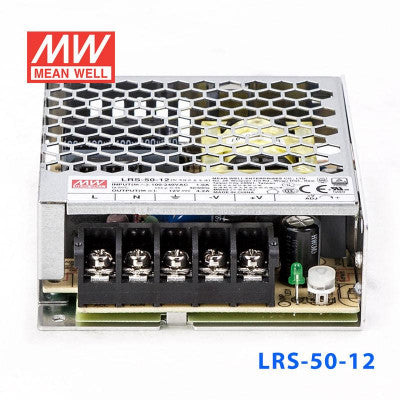

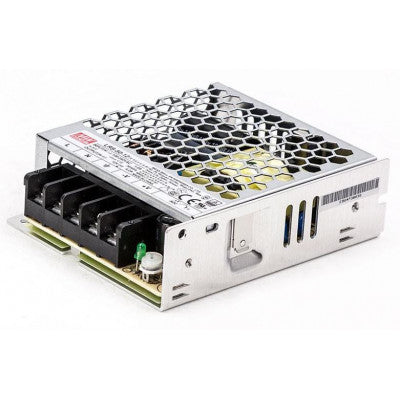

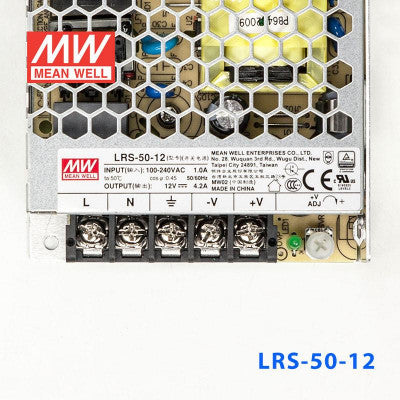

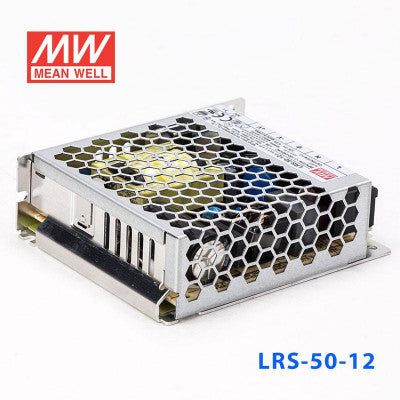

LRS-50 Enclosed Type 50W 12V Power Supply
Ultra compact power supply with high efficiency and 3 years warranty
- Output Voltage: 12V
- Type: Enclosed Type
- Approx. Wattage: 50W
- Features: Standard
- Series: LRS (Reliable)
- Mechanical Form: Enclosed
- Warranty: 3 Years Warranty
- IP Level: Non-Waterproof
- Input Voltage: 100-240V auto-select
Top Features:
- No load power consumption <0.2W for 35W/50W; <0.3W for 75W/100W
- Withstand 300VAC surge input for 5 seconds
- Ultra compact and 1U low profile
- Protections: Short circuit / Overload / Over voltage
The LRS-50 Enclosed Type 50W 12V Power Supply is designed to deliver reliable power with high efficiency. With a compact design and a wide input voltage range of 100-240V auto-select, this power supply is suitable for various applications. It offers multiple protections including short circuit, overload, and overvoltage.
- AC Input Voltage Range: 85~264VAC; 120~370VDC
- AC Inrush Current (max.): Cold start, 45A at 230VAC
- DC Adjustment Range: ±10% by potentiometer
- Overload Protection Range: 110%~150%
- Overload Protection Type: Hiccup mode, auto-recovery
- Over Voltage Protection Range: 115%~135% rated output voltage
- Over Voltage Protection Type: Shut down o/p voltage, re-power on to recover
- Withstand Voltage: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC, 1 minute
This power supply has a working temperature range of -30~+70°C, offering high reliability and efficiency. It complies with safety standards such as UL60950-1, IEC/EN60950-1, and EMC standards EN55022 class B. The compact design and long life make it an ideal choice for various household and industrial applications.
Related Documents:
- LRS-50 Datasheet
- LRS-50-12 Test Report
- CE Certificate (LRS-50)
- UL Certificate (LRS-50)
Images are for illustration only; actual product may vary.
