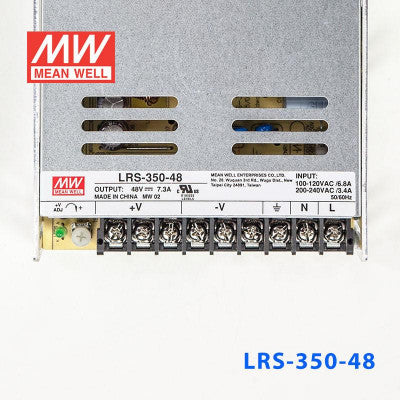

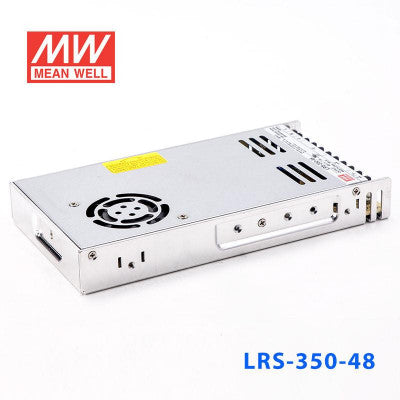

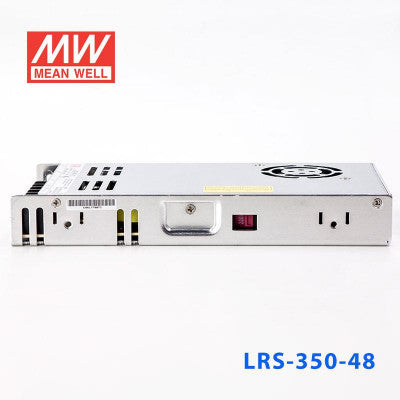

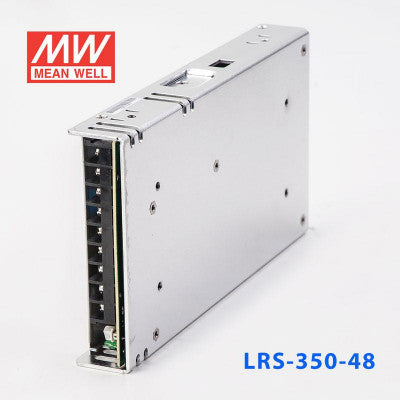

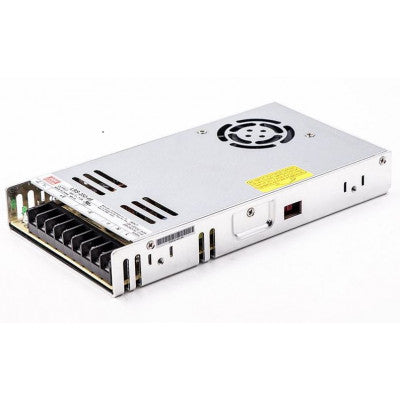

LRS-350 48V Enclosed Type Power Supply
350W reliable power supply with 3-year warranty
- Output Voltage: 48V
- Type: Enclosed Type
- Approx. Wattage: 350W
- Features: Standard
- Series: LRS (Reliable)
- Mechanical Form: Enclosed
- Warranty: 3 Years Warranty
- IP Level: Non-Waterproof
- Input Voltage: 115V/230V by switch
Top Features:
- No load power consumption <0.5W
- Withstand 300VAC surge input
- Ultra compact and 1U low profile
- Short circuit / Overload / Over voltage / Over temp protections
The LRS-350 48V Enclosed Type Power Supply is an efficient and reliable solution for household appliances. With a high operating temperature of up to 70°C and 3 years warranty, it ensures long-term performance.
Specifications:
- AC input voltage range: 115 / 230VAC by switch
- AC inrush current (max.): Cold start, 60A at 230VAC
- DC adjustment range: ±10% by potentiometer
- Overload protection Range: 110%~140%
- Overload protection Type: Hiccup mode, auto-recovery
- Over voltage protection Range: 115%~145% rated output voltage
- Over voltage protection Type: Shut down o/p voltage, re-power on to recover
- Withstand voltage: I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
- Working temperature: -25~+70°C (refer to output derating curve)
- Safety standards: UL60950-1 approved
- EMC standards: Design refer to EN55022 class A
- Connection: 9P/9.5mm pitch terminal block
- Dimension (LxWxH): 215x115x30
