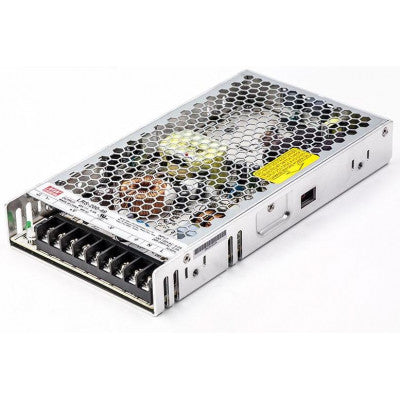

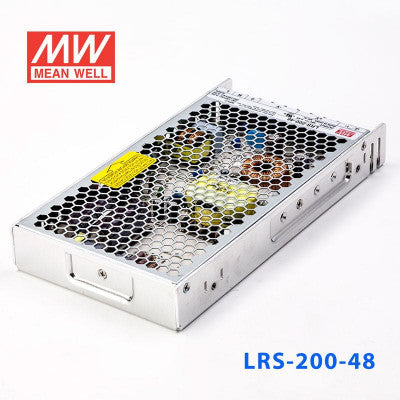

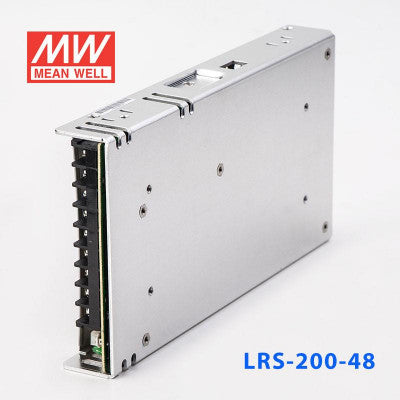

LRS-200 Enclosed Type Power Supply
Reliable 3-year warranty power supply with 48V output voltage
- Output Voltage: 48V
- Type: Enclosed Type
- Approx. Wattage: 211W
- Features: Standard
- Series: LRS (Reliable)
- Mechanical Form: Enclosed
- Warranty: 3 Years Warranty
- IP Level: Non-Waterproof
- Input Voltage: 115V/230V by switch
Top Features:
- Low no load power consumption
- 300VAC surge input withstand
- Compact 1U low profile design
- High operating temperature up to 70oC
No load power consumption is less than 0.5W for 150W and less than 0.75W for 200W/350WAC input selectable by switch. The power supply can withstand 300VAC surge input for 5 seconds and passed 5G vibration test.
The LRS-200 power supply offers protections for Short circuit, Overload, Over voltage, and Over temp. It operates with cooling by free air convection for 150W/200W and forced air cooling by a built-in DC fan for 350W versions. Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances (150W).
Operating altitude of the power supply is up to 5000 meters. It comes with an LED indicator for power on, high efficiency, long life, and high reliability, all at a low cost. The product is backed by a 3-year warranty for customer peace of mind.
Specifications:
- AC input voltage range: 115 / 230VAC by switch
- AC inrush current (max.): Cold start, 60A at 230VAC
- DC adjustment range: ±10% by potentiometer
- Overload protection Range: 110%~140%
- Overload protection Type: Hiccup mode, auto-recovery
- Over voltage protection Range: 115%~145% rated output voltage
- Over voltage protection Type: Shut down o/p voltage, re-power on to recover
- Withstand voltage: I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
- Working temperature: -25~+70°C (refer to output derating curve)
- Safety standards: UL60950-1 approved
- EMC standards: Design refer to EN55022 class A

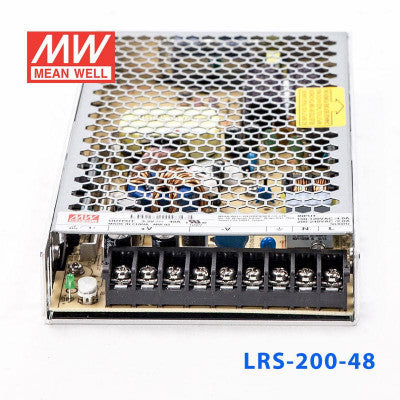

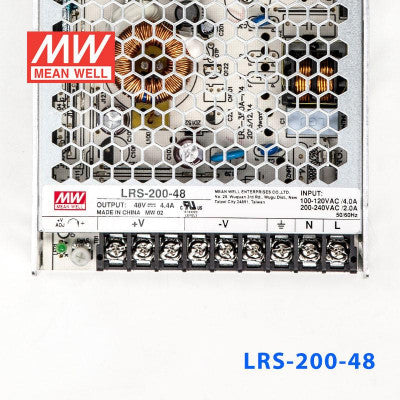

- Connection: 9P/9.5mm pitch terminal block
- Dimension (LxWxH): 215x 115x 30
For more details or bulk pricing, contact our sales team directly at sales02@thansiv.com or +91-8095406416.
* Images are for illustration only; actual product may vary.
?
