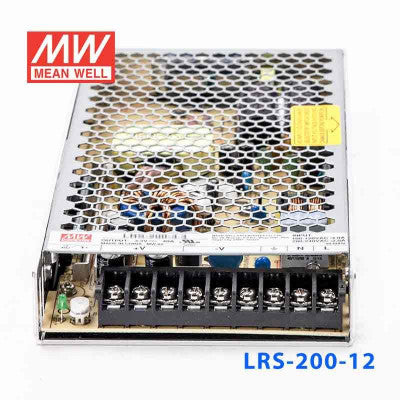

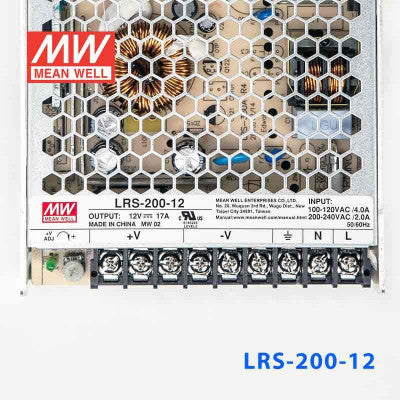

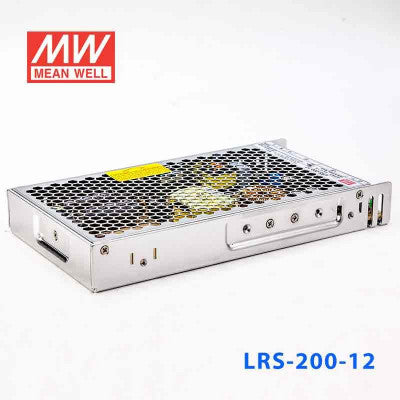

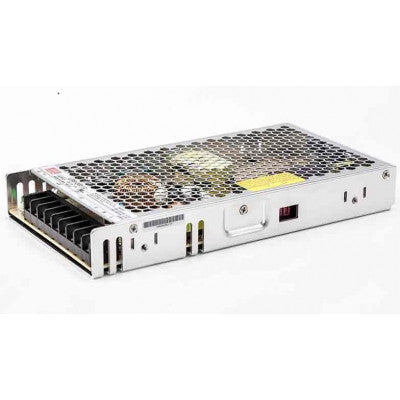

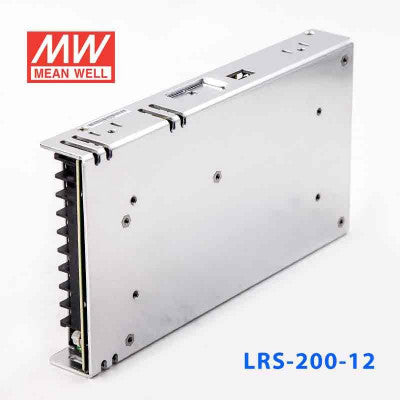

Enclosed 12V Power Supply - LRS Series
Compact and reliable 204W power supply with extensive protections
- Output Voltage: 12V
- Type: Enclosed Type
- Approx. Wattage: 204W
- Features: Standard
- Series: LRS (Reliable)
- Mechanical Form: Enclosed
- Warranty: 3 Years Warranty
- IP Level: Non-Waterproof
- Input Voltage: 115V/230V by switch
Top Features:
- Withstand 300VAC surge input for 5 seconds
- Ultra compact and 1U low profile
- High operating temperature up to 70°C
- Protections: Short circuit, Overload, Over voltage, Over temp.
No load power consumption: <0.5W for 150W; <0.75W for 200W/350W. AC input selectable by switch. Cooling by free air convection or forced air cooling by built-in DC fan. Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances (150W). Operating altitude up to 5000 meters. LED indicator for power on. High efficiency, long life, and high reliability. Low cost.
Specifications:
- AC input voltage range: 115/230VAC by switch
- AC inrush current (max.): Cold start, 60A at 230VAC
- DC adjustment range: ±10% by potentiometer
- Overload protection Range: 110%~140%
- Overload protection Type: Hiccup mode, auto-recovery
- Over voltage protection Range: 115%~145% rated output voltage
- Over voltage protection Type: Shut down o/p voltage, re-power on to recover
- Withstand voltage: I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
- Working temperature: -25~+70°C (refer to output derating curve)
- Safety standards: UL60950-1 approved
- EMC standards: Design refer to EN55022 class A
- Connection: 9P/9.5mm pitch terminal block
- Dimension (LxWxH): 215x115x30
