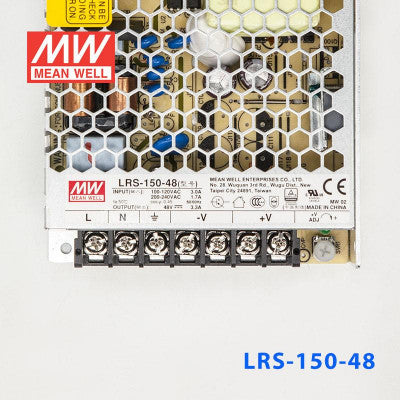

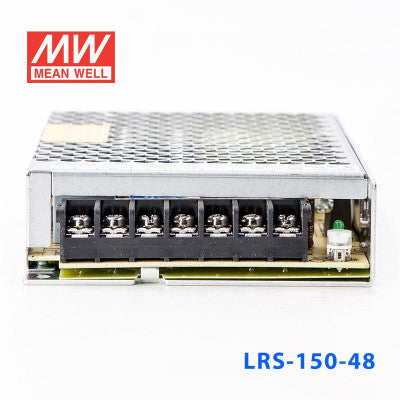

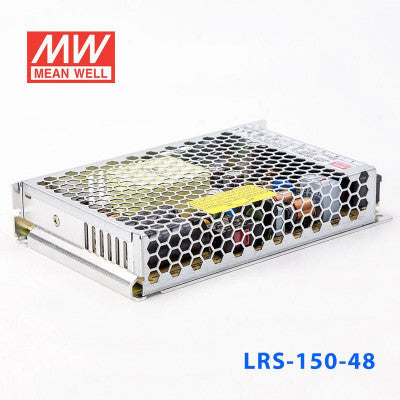

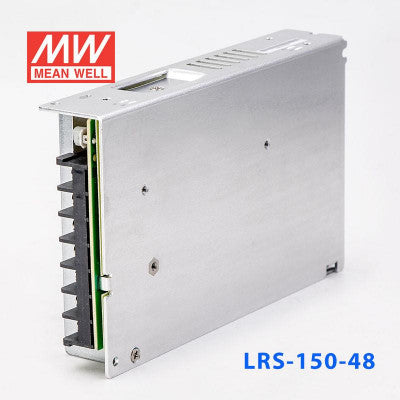

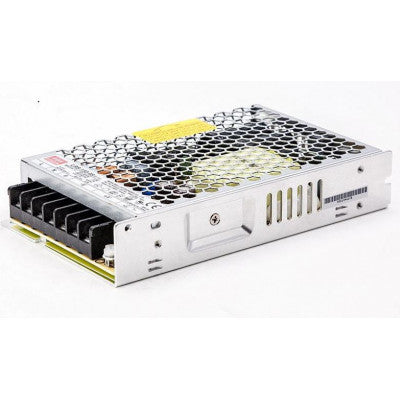

LRS-150 Enclosed Type Power Supply
Output Voltage: 48V | Wattage: 158W | Warranty: 3 Years
- Type: Enclosed Type
- Series: LRS (Reliable)
- Mechanical Form: Enclosed
- IP Level: Non-Waterproof
- Input Voltage: 115V/230V by switch
Top Features:
- No load power consumption <0.5W for 150W; <0.75W for 200W/350W
- AC input selectable by switch
- 300VAC surge input withstand for 5 seconds
- Ultra compact and 1U low profile
Specifications:
- AC input voltage range: 115/230VAC by switch
- AC inrush current (max.): Cold start, 60A at 230VAC
- DC adjustment range: ±10% by potentiometer
- Overload protection Range: 110%~140%
- Overload protection Type: Hiccup mode, auto-recovery
- Over voltage protection Range: 115%~145% rated output voltage
- Over voltage protection Type: Shut down o/p voltage, re-power on to recover
- Working temperature: -30~+70°C (refer to output derating curve)
Related Documents:
- LRS-150 Datasheet
- LRS-150-48 Test Report
- CE, UL, CB, TUV, and EMC Certificates
