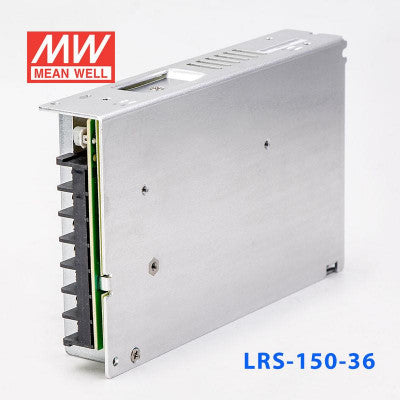

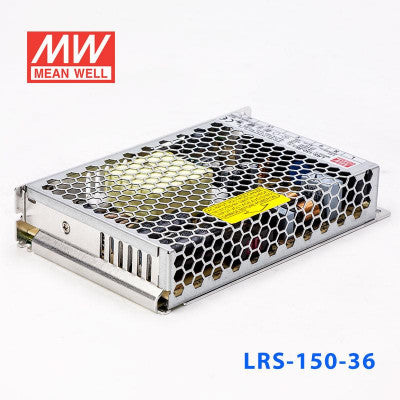

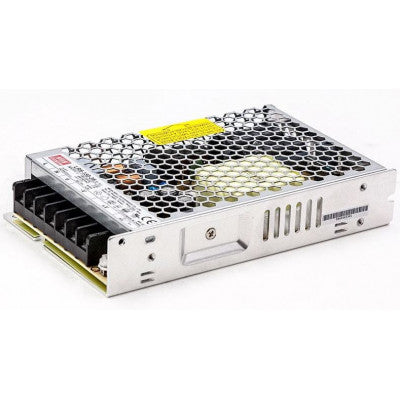

LRS-150 Enclosed Type Power Supply
Reliable 155W power supply with 3-year warranty and standard features
- Output Voltage: 36V
- Type: Enclosed Type
- Approx. Wattage: 155W
- Features: Standard
- Series: LRS (Reliable)
- Mechanical Form: Enclosed
- Warranty: 3 Years Warranty
- IP Level: Non-Waterproof
- Input Voltage: 115V/230V by switch
Top Features:
- Low no-load power consumption
- Surge input withstand capability
- Compact and low profile design
- High operating temperature up to 70°C
No load power consumption <0.5W for 150W; <0.75W for 200W/350WAC input selectable by switch. Withstand 300VAC surge input for 5 seconds. Ultra-compact and 1U low profile. Withstand 5G vibration test. High operating temperature up to 70°C. Protections include Short circuit/Overload/Over voltage/Over temp. Cooling by free air convection (150W/200W); forced air cooling by built-in DC fan (350W). Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances (150W). Operating altitude up to 5000 meters. LED indicator for power on. High efficiency, long life, and high reliability. Low cost. 3 years warranty.
Detailed Specifications:
- AC input voltage range: 115 / 230VAC by switch
- AC inrush current (max.): Cold start, 60A at 230VAC
- DC adjustment range: ±10% by potentiometer
- Overload protection Range: 110%~140%
- Overload protection Type: Hiccup mode, auto-recovery
- Over voltage protection Range: 115%~145% rated output voltage
- Over voltage protection Type: Shut down o/p voltage, re-power on to recover
- Withstand voltage: I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC
- Working temperature: -30~+70°C (refer to output derating curve)
- Safety standards: UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, CCC GB4943 approved
- EMC standards: EN55022 class B, EN55014, EN61000-3-2, 3, EN61000-4,2,3,4,5,6,8,11, GB9254

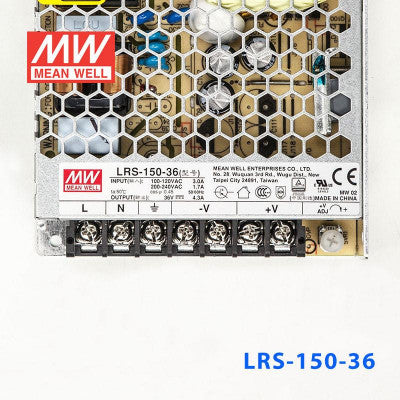

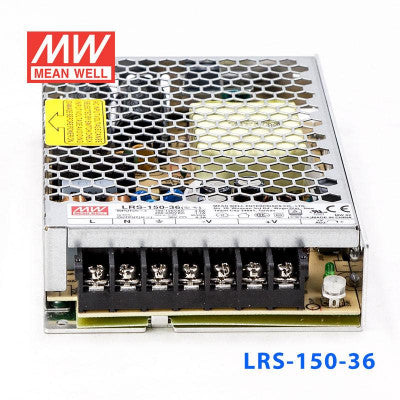

- Connection: 7P/9.5mm pitch terminal block
- Dimension (LxWxH): 159x 97x 30
Related Documents:
- LRS-150 Datasheet
- LRS-150-36 Test Report
- CE Certificate (LRS-150)
- UL Certificate (LRS-150)
- CB(60335) Certificate (LRS-150)
- CB(60950) Certificate (LRS-150)
- TUV(60335) Certificate (LRS-150)
- TUV(60950) Certificate (LRS-35)
- TUV(61558) Certificate (LRS-150)
- EMC Certificate(LRS-150)
*Images are for illustration only; actual product may vary.
