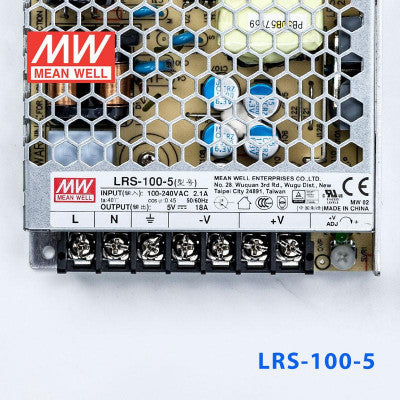

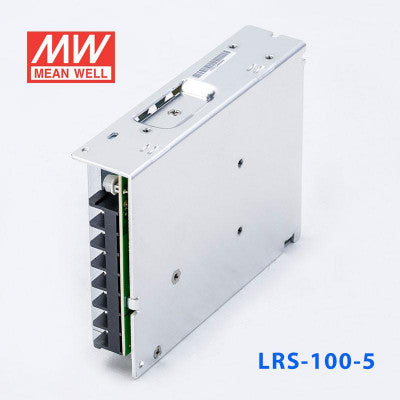

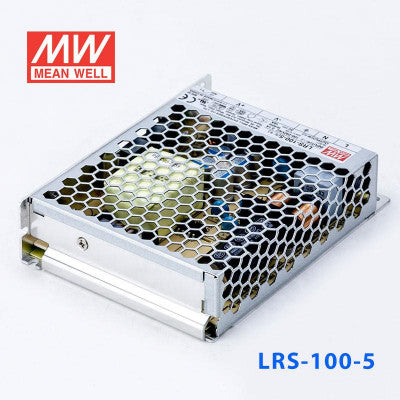

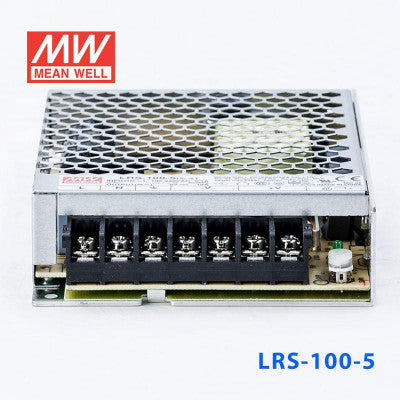

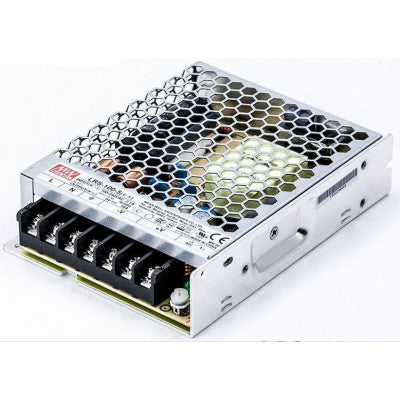

LRS-100 5V Enclosed Type Power Supply
Output Voltage: 5V, Wattage: 90W, Warranty: 3 Years
- Type: Enclosed Type
- Series: LRS (Reliable)
- IP Level: Non-Waterproof
- Input Voltage: 100-240V auto-select
Features:
- No load power consumption <0.2W for 35W/50W; <0.3W for 75W/100W
- Ultra compact and 1U low profile
- High operating temperature up to 70°C
- Protections: Short circuit / Overload / Over voltage
The LRS-100 5V Enclosed Type Power Supply is designed for household appliances with a reliable 90W output. It has a non-waterproof enclosed design with an input voltage range of 100-240V.
Specifications:
- AC input voltage range: 85~264VAC; 120~370VDC
- AC inrush current (max.): Cold start, 50A at 230VAC
- DC adjustment range: ±10% by potentiometer
- Overload protection Range: 110%~150%
- Over voltage protection Range: 115%~135% rated output voltage
- Working temperature: -30~+70°C (refer to output derating curve)
The power supply has a wide AC input range and offers various protections such as hiccup mode overload protection and shutdown for overvoltage. It meets safety standards UL60950-1, IEC/EN60950-1, and more.
Related Documents:
- LRS-100 Datasheet
- LRS-100-5 Test Report
- CE Certificate (LRS-100)
- UL Certificate (LRS-100)
- CB(60335) Certificate (LRS-100)
- CB(60950) Certificate (LRS-100)
- TUV(60335) Certificate (LRS-100)
- TUV(60950) Certificate (LRS-100)
- TUV(61558) Certificate (LRS-100)
- EMC Certificate (LRS-100)
* Images are for illustration only; actual product may vary.
