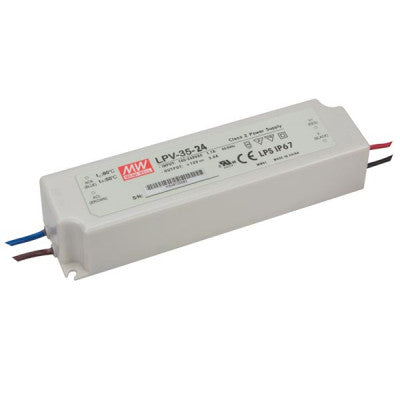

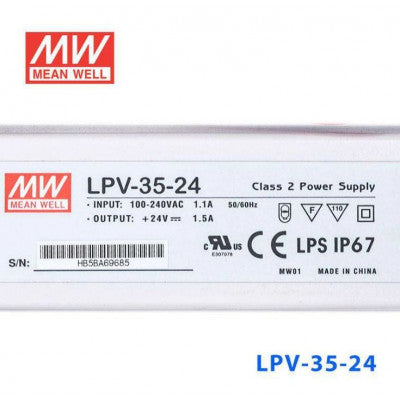

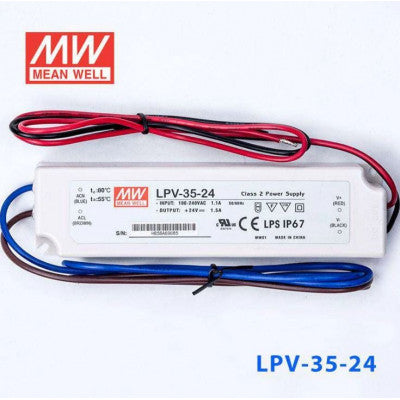

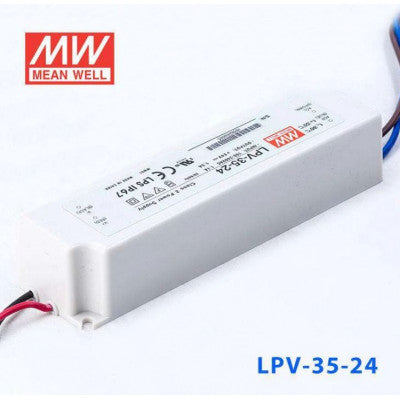

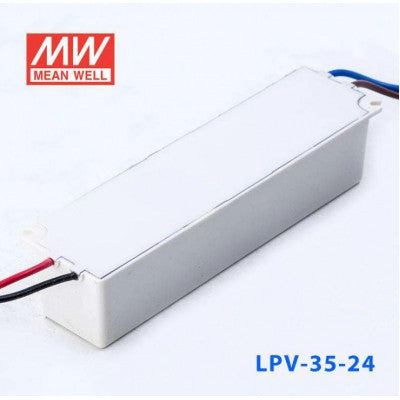

LED Waterproof Power Supply 24V 36W
High-quality LED power supply with standard features and 2-year warranty.
- Output Voltage: 24V
- Type: LED & Waterproof
- Approx. Wattage: 36W
- Features: Standard, Green Power Series LPV (Plastic IP67)
- Mechanical Form: Plastic
- Warranty: 2 Years Warranty
- IP Level: IP67
- Input Voltage: 100-240V auto-select
Top Features:
- Fully encapsulated with IP67 level
- Short circuit, overload, overvoltage protection
- Constant voltage design (C.V. mode)
- Class 2 power unit, pass LPS
Fully encapsulated LED power supply suitable for LED-based decorative/architectural lighting, LED stage and theater lighting, and LED electronic displays. Cooling by free air convection ensures high reliability and low cost.
Specifications:
- AC Input Voltage Range: 90~264VAC
- AC Inrush Current: Cold start, 55A at 230VAC
- Overload Range: 110%~150%
- Protection Type: Hiccup mode, auto-recovery
- Over Voltage Protection: 115%~135% rated output voltage
- Withstand Voltage: I/P-O/P: 3kVAC
- Working Temperature: -30~+70°C
- Vibration: 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards include TUV EN60950-1, UL879, UL1310 approved for LPV-20 and IEC 61347-1, IEC 61347-2-13, UL1310 approved for LPV-35. EMC standards compliant with EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11.
- Connection Input: UL rated, 18AWGx2C (60cm)
- Connection Output: UL rated, 16AWGx2C (60cm)
- Dimension (LxWxH) (mm): 148x40x30
For more details or bulk pricing, contact our sales team directly at sales02@thansiv.com or +91-8095406416.
Images are for illustration only; actual product may vary.
