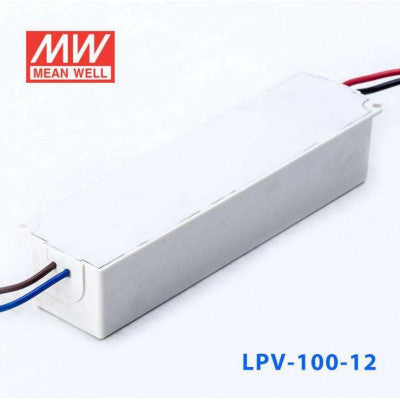

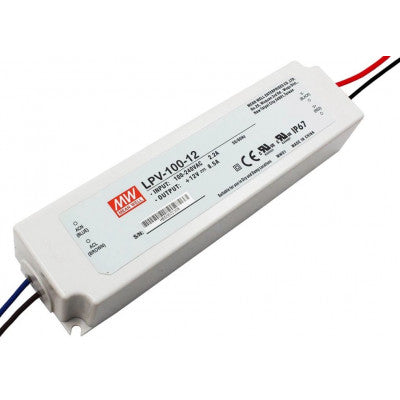

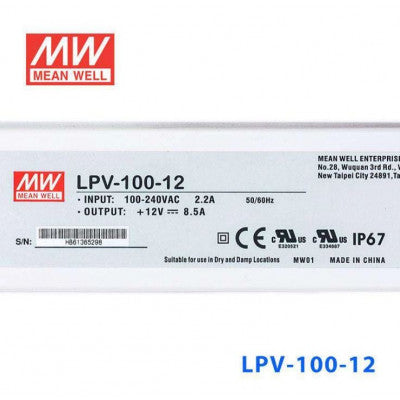

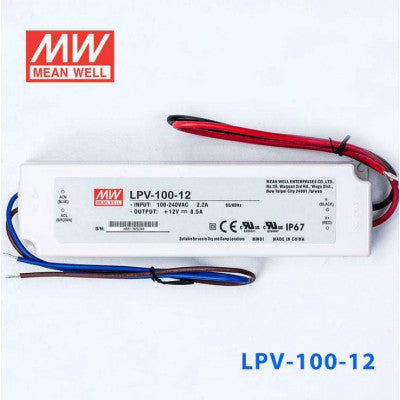

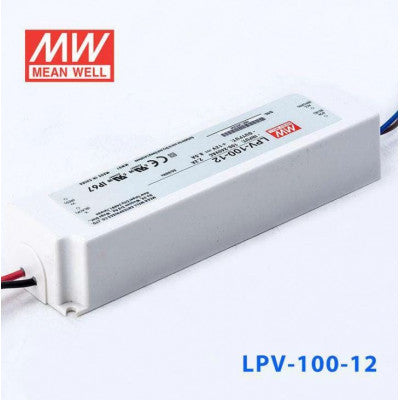

100W LED Waterproof Power Supply
Reliable and efficient power supply for LED lighting applications
- Output Voltage: 12V
- Type: LED & Waterproof
- Approx. Wattage: 100W
- Features: Standard, Green Power Series LPV (Plastic IP67)
- Mechanical Form: Plastic
- Warranty: 2 Years Warranty
- IP Level: IP67
- Input Voltage: 100-240V auto-select
Top Features:
- Fully encapsulated with IP67 level
- Short circuit, overload, and overvoltage protections
- Constant voltage design with Class 2 power unit
- Withstand 300VAC surge input for 5 seconds
The 100W LED Waterproof Power Supply is suitable for LED-based decorative/architectural lighting, LED stage and theater lighting, and LED electronic displays. It comes with a 2-year warranty for peace of mind.
Specifications:
- AC Input Voltage Range: 90~264VAC; 127~370VDC
- AC Inrush Current: Cold start, 75A at 230VAC
- Overload Protection: 110%~150% hiccup mode, auto-recovery
- Over Voltage Protection: 115%~135% rated output voltage
- Withstand Voltage: I/P-O/P: 3kVAC
- Working Temperature: -25~+70°C (refer to output derating curve)
- Vibration: 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
- Safety Standards: Design refer to IEC60950-1
For more detailed information, you can refer to the following documents:
- LPV-100 Datasheet
- LPV-100-12 Test Report
- CE Certificate (LPV-100)
- UL Certificate (LPV-100)
- CB Certificate (LPV-100)
- EMC Certificate (LPV-100)
* Images are for illustration only; actual product may vary.
