LMC660 CMOS Quad Operational Amplifier
Ideal for single supply operation with rail-to-rail output swing and high performance
- Supply Voltage: +5V to +15.5V
- Input Common-Mode Range: Includes ground
- Input Offset Voltage: 3 mV
- Offset Voltage Drift: 1.3 µV/°C
- Input Bias Current: 2 fA
- High Voltage Gain: 126 dB
- Operating Range: +5V to +15.5V
- Double-Poly Silicon-Gate CMOS Process
Top Features:
- Rail-to-Rail Output Swing
- High Voltage Gain: 126 dB
- Low Input Offset Voltage: 3 mV
- Low Offset Voltage Drift: 1.3 µV/°C
The LMC660 CMOS Quad operational amplifier is designed to address performance limitations seen in CMOS amplifiers, with specifications matching or surpassing bipolar equivalents. This chip utilizes TI's advanced Double-Poly Silicon-Gate CMOS process, ensuring high-quality performance in various applications.
Applications:
- High-Impedance Buffer or Preamplifier
- Precision Current-to-Voltage Converter
- Long-Term Integrator
- Sample-and-Hold Circuit
- Peak Detector
- Medical Instrumentation
- Industrial Controls
- Automotive Sensors
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com

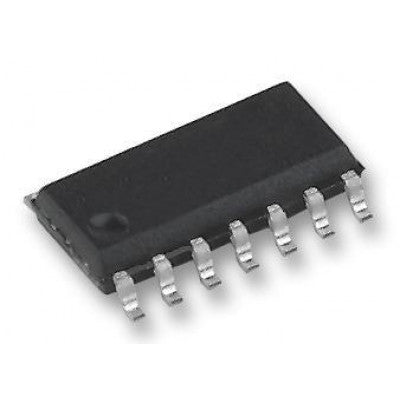

*Images are for illustration only; actual product may vary.
