LM7812 Series Three Terminal Positive Regulators

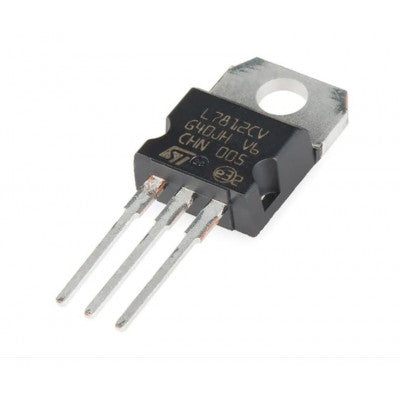

TO-220 package with fixed output voltages for versatile applications
- Output Current: up to 1A
- Output Voltages: 5, 6, 8, 9, 12, 15, 18, 24
- Thermal Overload Protection
- Short Circuit Protection
The LM7812 series of three terminal positive regulators are designed with internal current limiting, thermal shutdown, and safe operating area protection, ensuring durability in various applications. With proper heat sinking, they can deliver over 1A output current. While primarily fixed voltage regulators, these devices can also be used with external components for adjustable voltages and currents.
Specifications:
- Output Voltage: 11.5 - 12.5 V
- Line Regulation: 10 - 240 mV
- Load Regulation: 11 - 240 mV
- Quiescent Current: 5.1 - 8 °C
- Ripple Rejection: 55 - 71 dB
Related Document: LM7812 IC Data Sheet
