LM7806 Three Terminal Positive Regulator

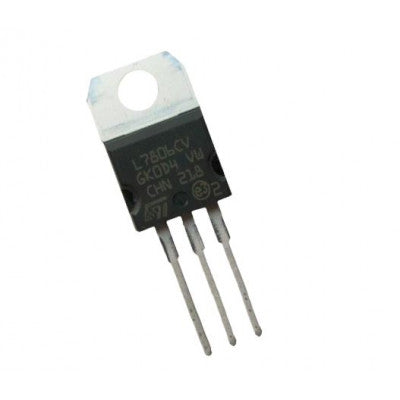

TO-220 package with fixed output voltages for versatile applications
- Output Current: up to 1A
- Output Voltages: 5, 6, 8, 9, 12, 15, 18, 24
- Thermal Overload Protection
- Short Circuit Protection
The LM7806 series of three terminal positive regulators are designed with internal current limiting, thermal shutdown, and safe operating area protection, ensuring durability in various applications. With proper heat sinking, they can deliver over 1A output current. These regulators, available in the TO-220 package, can be used as fixed voltage regulators or configured with external components for adjustable voltages and currents.
Specifications:
- Output Voltage: 6V
- Line Regulation: 5-120mV
- Load Regulation: 9-120mV
- Quiescent Current: 5-8°C
- Ripple Rejection: 62-73dB
Related Document: LM7806 IC Data Sheet
