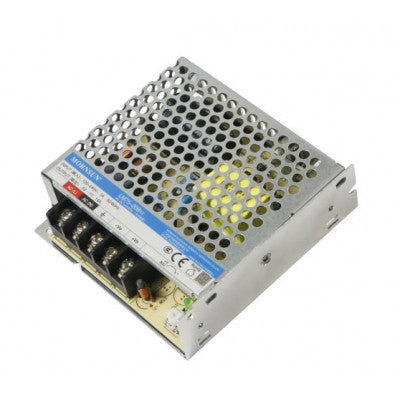

LM75-20B15
Mornsun Enclosed AC-DC Switching Power Supply
- Type: Enclosed Type Single Output
- Output Power: 75W
- Series: LM75-20B
- Part Number: LM75-20B15
- Mechanical Form: Enclosed
- IP Level: Non-Waterproof
- Output Voltage: 15V
- Output Current: 5A
Features
- Universal 85 - 264VAC or 120 - 373VDC Input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -30°C to +70°C
- Low standby power consumption, high efficiency
LM75-20B15 is one of Mornsun’s enclosed AC-DC switching power supply. It features universal AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency, high reliability and double or reinforced insulation. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.
Detailed Specifications
- Input voltage range: 85-264VAC; 120-373VDC
- Inrush current (max.): Cold start, 65A at 230VAC
- Output voltage adjustable range: 13.5-18V
- Efficiency at 230VAC: 88%
- Max. capacitive load: 5000µF
- Input current (max.): 1A at 230VAC
- Short circuit protection: Hiccup, continuous, self-recovery
- Over-current protection: 110%-150% Io, self-recovery
