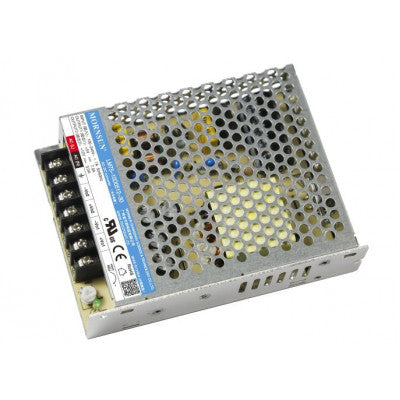

LM75-10D0524-20
Enclosed Type Dual Output Power Converter with High EMC Protection
- Type: Enclosed Type Dual Output
- Output Power: 73W
- Series: LM75-10D
- Part Number: LM75-10D0524-20
- Mechanical Form: Enclosed
- IP Level: Non-Waterproof
- Output Voltage: 5V, 24V
- Output Current: 5A, 2A
Features
- Universal 90 - 264VAC or 120 - 373VDC Input voltage
- Operating ambient temperature range: -30? to +70?
- High efficiency, high reliability, and long lifetime
- LED indicator for power on
The LM75-10D0524-20 power converter design features two isolated output versions, which can independently supply two different loads in the system that need to be isolated from each other. The products can be used in harsh working environments with an ambient temperature range from -30? to +70?, without the need of a fan for further heat dissipation. In addition, the converters EMC immunity performance meets the requirements of IEC61000 standard and meet emission standard CISPR32/EN55032, class B without any external components, thus providing excellent EMC protection. The products also meet IEC/EN/UL62368, EN60335, GB4943 safety standards. The converters integrate a variety of protection features and offer a high-performance to low-cost ratio providing the best power solution for a variety of industries such as industrial control equipment, instrumentation, and smart home and building equipment application.
Detailed Specifications
- Input voltage range: 90-264VAC; 120-373VDC
- Inrush current (max.): Cold start, 50A at 230VAC
- Output voltage adjustable range: 4.75-5.5VDC
- Working current range: 0.5-6A, 0.2-3A
- Efficiency: 84%
- Max. capacitive load: 5000µF, 2000µF
- Input current (max.): 0.9A at 230VAC
- Short circuit protection: Hiccup, continuous, self-recovery
- Over-current protection: 110%? Io, self-recovery
- Withstand voltage: 300VAC
- Working temperature: -30 - 70°C
- Connection: Terminal block
- Dimension (LxWxH): 129 x 97 x 30 mm
- Weight: 310 gm
- Cooling Method: Free air convection
- Case Material: Metal (AL1100, SGCC)
- MTBF: >300000 Hrs
- Safety Class: CLASS I
- Safety standards: Meet IEC/EN/UL62368/EN60335/GB4943
- EMC standards: CISPR32/EN55032 CLASS B, IEC/EN61000-3-2 CLASS A, IEC/EN 61000-4-3 10V/m
- Certification: CE, RoHS
- Warranty: 3 years
*Images are for illustration only; actual product may vary.
