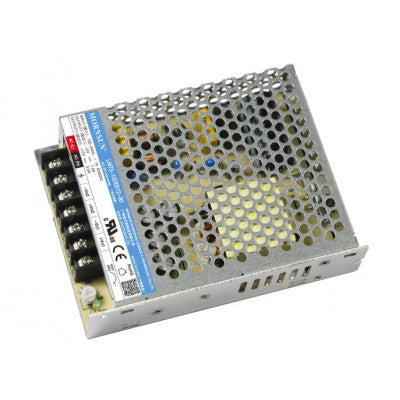

LM75-10D0512-30
Enclosed Type Dual Output Power Converter with High EMC Protection
- Type: Enclosed Type Dual Output
- Output Power: 71W
- Series: LM75-10D
- Part Number: LM75-10D0512-30
- Mechanical Form: Enclosed
- IP Level: Non-Waterproof
- Output Voltage: 5V, 12V
- Output Current: 7A, 3A
Top Features:
- Universal 90 - 264VAC or 120 - 373VDC Input voltage
- Operating ambient temperature range: -30? to +70?
- High efficiency, reliability, and long lifetime
- Output short circuit, over-current, over-voltage protection
LM75-10D0512-30 is designed for harsh environments with an ambient temperature range from -30? to +70?. It offers two isolated output versions to independently supply different loads. The product meets EMC immunity standards and safety standards such as IEC/EN/UL62368, EN60335, GB4943. With various protection features, it is suitable for industrial control equipment, instrumentation, and smart home applications.
Detailed Specifications:
- Input voltage range: 90-264VAC; 120-373VDC
- Inrush current (max.): Cold start, 50A at 230VAC
- Output voltage adjustable range: 4.75-5.5VDC
- Working current range: 0.7-8A, 0.3-4A
- Efficiency: 82%
- Max. capacitive load: 7000µF, 3000µF
- Input current (max.): 0.9A at 230VAC
- Short circuit protection: Hiccup, continuous, self-recovery
- Over-current protection: 110% Io, self-recovery
- Withstand voltage: 300VAC
- Working temperature: -30 - 70°C
- Connection: Terminal block
- Dimension (LxWxH): 129 x 97 x 30 mm
- Weight: 310 gm
- Cooling Method: Free air convection
- Case Material: Metal (AL1100, SGCC)
- MTBF: >300000 Hrs
- Safety Class: CLASS I
- Safety standards: Meet IEC/EN/UL62368/EN60335/GB4943
- EMC standards: CISPR32/EN55032 CLASS B, IEC/EN61000-3-2 CLASS A, IEC/EN 61000-4-3 10V/m
- Certification: CE, RoHS
- Warranty: 3 years
