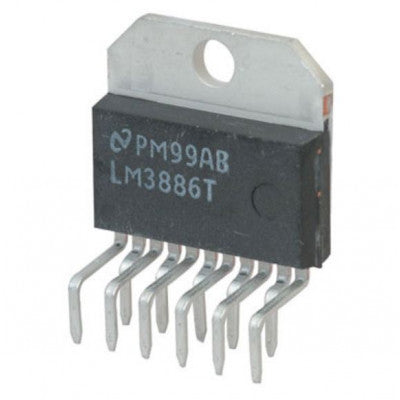

LM3886 High-Performance Audio Power Amplifier
A high-performance audio power amplifier delivering 68W of continuous power.
- Part number: LM3886
- Audio input type: Analog Input
- Architecture: Class-AB
- Speaker channels (Max): Mono
- Power stage supply (Min) (V): 20
- Power stage supply (Max) (V): 94
- Output power (W): 68
- Load (Min) (ohms): 4
- SNR (dB): 110
- THD + N @ 1 kHz (%): 0.03
- Iq (Typ) n (mA): 50
- Control interface: Hardware
- Closed/open loop: Open
- Analog supply (Min) (V): 20
- Analog supply (Max) (V): 84
- Power to parallel bridge tied load (Max) (W): 68
- PSRR (dB): 120
- Operating temperature range (C): 0 to 70
- Rating: See Data Sheet
Features:
- 68W Cont. Avg. Output Power into 4?
- 38W Cont. Avg. Output Power into 8?
- 50W Cont. Avg. Output Power into 8?
- 135W Instantaneous Peak Output Power Capability
The LM3886 is a high-performance audio power amplifier capable of delivering 68W of continuous average power to a 4? load and 38W into 8? with 0.1% THD+N from 20Hz–20kHz. Utilizing its Self Peak Instantaneous Temperature (°Ke) (SPiKe) protection circuitry, the LM3886 provides an inherently, dynamically protected Safe Operating Area (SOA). It maintains an excellent signal-to-noise ratio of greater than 92dB with a typical low noise floor of 2.0µV. The LM3886 exhibits extremely low THD+N values of 0.03% at the rated output into the rated load over the audio spectrum, and provides excellent linearity with an IMD (SMPTE) typical rating of 0.004%.
The LM3886 is safeguarded at the output against overvoltage, undervoltage, overloads, including shorts to the supplies, thermal runaway, and instantaneous temperature peaks. It also features output protection from a short to ground or to the supplies via internal current limiting circuitry, output over-voltage protection against transients from inductive loads, and supply under-voltage protection.
