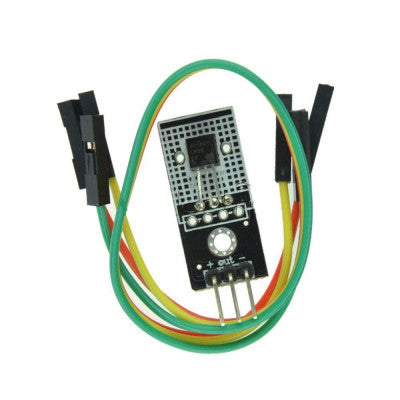

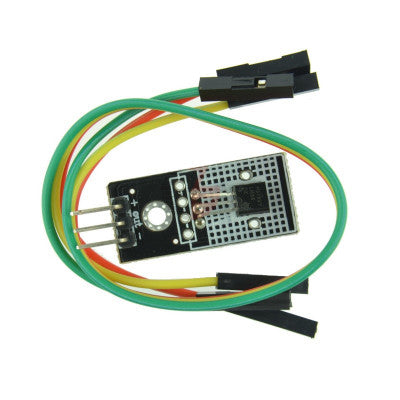

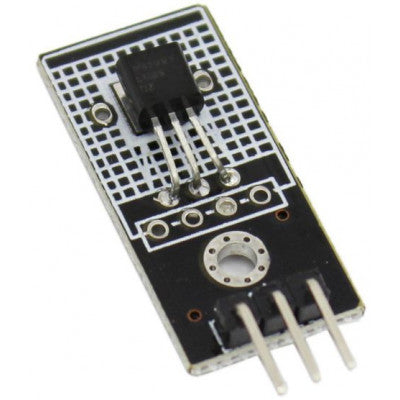

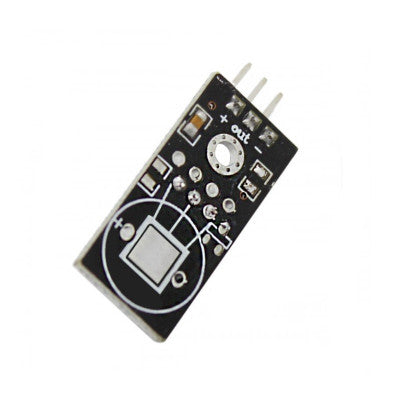

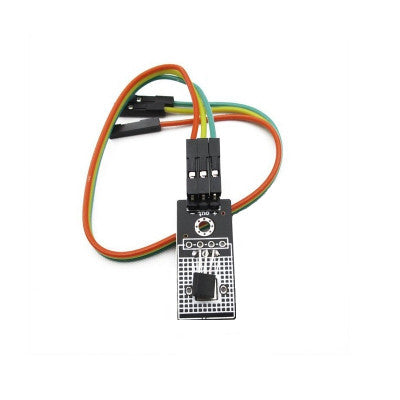

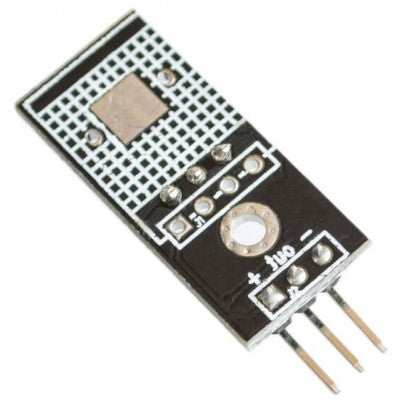

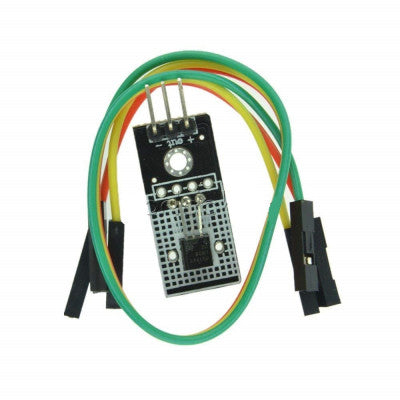

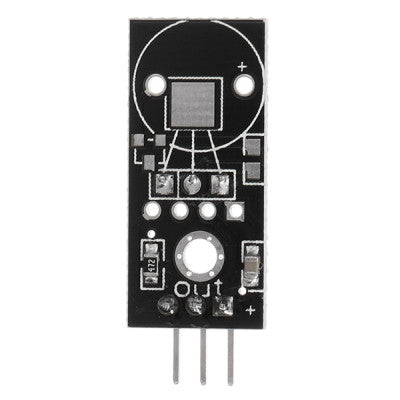

LM35D Analog Temperature Sensor Module
Analog temperature sensor module for detecting ambient air temperature
- Based on: LM35 temperature sensor
- Sensitivity: 10mV per degree Celsius
- Output: Proportional to temperature
- Operating Temperature Range: -55°C to 150°C
- Scale Factor: 0.01V/°C
- Power Consumption: Less than 60uA
- Output Impedance: 1mA current through only 0.1?
- Installation: Screw holes for easy fixing
Top Features:
- Calibrated directly in ° Celsius
- Linear + 10 mV/°C Scale Factor
- Low power consumption, less than 60uA
- Easy installation with screw holes
LM35 is a precision IC temperature sensor with its output proportional to the temperature (in °C). The sensor circuitry is sealed, ensuring accuracy and preventing oxidation. It offers low self-heating and minimal temperature rise in still air. The LM35D linear temperature sensor, when combined with an Arduino board, makes temperature measurement easy.
Wiring Instructions of LM35D Analog Temperature Sensor Module:
“+”: Positive power supply
“–“: Negative power supply
“out”: Connect to AD converter module analog signal input terminal or multimeter for measurement
* Images are for illustration only; actual product may vary.
