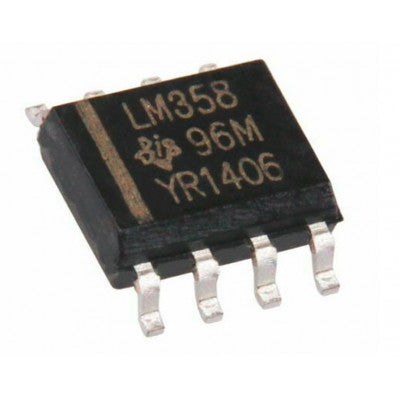

LM358 Series Operational Amplifiers
High gain, single power supply operational amplifiers with wide voltage range
- Supply Voltage: 3V to 32V
- Differential Input Voltage: 32V
- Input Voltage Range: -0.3V to +32V
- Operating Temperature Range: -25°C to +85°C
- Storage Temperature Range: -65°C to +150°C
- Lead Temperature DIP: 260°C
Advantages:
- Two internally compensated op amps
- Eliminates need for dual supplies
- Allows direct sensing near GND and VOUT also goes to GND
- Compatible with all forms of logic
Features:
- Available in 8-Bump micro SMD chip sized package
- Internally frequency compensated for unity gain
- Large dc voltage gain: 100 dB
- Wide bandwidth (unity gain): 1 MHz (temperature compensated)
The LM358 series consists of two independent, high gain, internally frequency compensated operational amplifiers designed to operate from a single power supply over a wide range of voltages. It can also operate from split power supplies with low power supply current drain independent of the power supply voltage magnitude. The input common-mode voltage range includes ground in linear mode, and the output voltage can swing to ground even with a single power supply voltage.
Applications include transducer amplifiers, dc gain blocks, and conventional op amp circuits easily implemented in single power supply systems. The LM358 series can be directly operated off the standard +5V power supply voltage used in digital systems, providing the required interface electronics without additional ±15V power supplies. It is also available in a chip-sized package (8-Bump micro SMD) using National’s micro SMD package technology.
The unity gain cross frequency is temperature compensated, and the input bias current is also temperature compensated.
For more details or bulk pricing, contact our sales team directly at sales02@thansiv.com or +91-8095406416.
*Images are for illustration only; actual product may vary.
