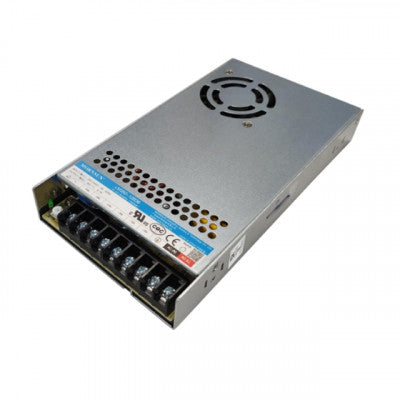

LM350-12B12 Series Enclosed AC-DC Switching Power Supply
Cost-effective, high efficiency power supply with excellent EMC performance
- Type: Enclosed Type Single Output
- Output Power: 350W
- Series: LM350-12B
- Part Number: LM350-12B12
- Mechanical Form: Enclosed
- IP Level: Non-Waterproof
- Output Voltage: 12V
- Output Current: 29A
Top Features:
- Accepts AC or DC input
- Ultra low standby power consumption
- Operating ambient temperature range: -30? to +70?
- Output short circuit, over-current, over-voltage, over-temperature protection
LM350-12B12 series is one of Mornsun’s enclosed AC-DC switching power supply. It features AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency, high reliability and double or reinforced insulation. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, IEC/EN60335, GB4943, IEC/EN61558 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.
Key Specifications:
- Type: Enclosed Type Single Output
- Output Power: 350W
- Series: LM350-12B
- Part Number: LM350-12B12
- Mechanical Form: Enclosed
- IP Level: Non-Waterproof
- Output Voltage: 12V
- Output Current: 29A
Features:
- Input voltage range: 176 - 264VAC or 240 - 370VDC
- Accepts AC or DC input (dual-use of same terminal)
- Ultra low standby power consumption <0.75W @230VAC
- Operating ambient temperature range: -30? to +70?
- LED indicator for power on
- Operating up to 5000m altitude
- Output short circuit, over-current, over-voltage, over-temperature protection
- Built-in DC fan
- Warranty - 3 years
* Images are for illustration only; actual product may vary.
