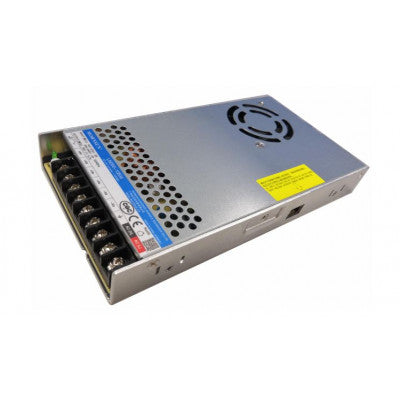

LM350-10B15 Enclosed AC-DC Switching Power Supply
Cost-effective, high efficiency power supply with excellent EMC performance
- Type: Enclosed Type Single Output
- Output Power: 348W
- Series: LM350-10B
- Part Number: LM350-10B15
- Mechanical Form: Enclosed
- IP Level: Non-Waterproof
- Output Voltage: 15V
- Output Current: 23.2A
Features:
- Selectable AC input range: 90 ~ 132VAC/180 ~ 264VAC
- DC input range: 240 ~ 373VDC (Switch in position of 230)
- Ultra low standby power consumption: < 0.75W @230VAC
- Operating ambient temperature range: -30°C ~ +70°C
LM350-10B15 is widely used in industrial, LED, street light control, electricity, security, telecommunications, smart home applications.
Detailed Specifications:
- Input voltage range: 90-132VAC; 180-264VDC
- Inrush current (max.): Cold start, 60A at 230VAC
- Output voltage adjustable range: 13.5-18V
- Efficiency at 230VAC: 86%
- Max. capacitive load: 3300µF
- Input current (max.): 4A at 230VAC
- Short circuit protection: Hiccup, continuous, self-recovery
- Over-current protection: 110%-150% Io, self-recovery
For more details or bulk pricing, contact our sales team at sales02@thansiv.com or +91-8095406416.
*Images are for illustration only; actual product may vary.
