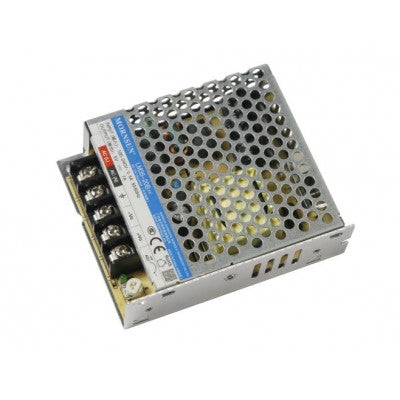

LM35-20B12 Enclosed AC-DC Switching Power Supply
Cost-effective, high efficiency power supply with universal AC/DC input
- Type: Enclosed Type Single Output
- Output Power: 36W
- Series: LM35-20B
- Part Number: LM35-20B12
- Mechanical Form: Enclosed
- IP Level: Non-Waterproof
- Output Voltage: 12V
- Output Current: 3A
Top Features
- Universal 85 - 264VAC or 120 - 373VDC Input voltage
- Operating ambient temperature range: -30? to +70?
- Low standby power consumption, high efficiency
- High I/O isolation test voltage up to 4000VAC
LM35-20B12 is one of Mornsun’s enclosed AC-DC switching power supplies, offering excellent EMC performance and meeting various standards such as IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943. Widely used in industrial, LED, street light control, security, telecommunications, and smart home applications.
Detailed Specifications
- Input voltage range: 85-264VAC; 120-373VDC
- Inrush current (max.): Cold start, 45A at 230VAC
- Output voltage adjustable range: 10.2-13.8V
- Efficiency at 230VAC: 86%
- Max. capacitive load: 1500µF
- Input current (max.): 0.4A at 230VAC
- Short circuit protection: Hiccup, continuous, self-recovery
- Over-current protection: 110%-150% Io, self-recovery
With safety features according to IEC/EN/UL62368, EN60335, GB4943, the LM35-20B12 has a withstand voltage of 300VAC and operates in a temperature range of -30 to 70°C. It comes with a 3-year warranty and meets various safety and EMC standards.
For more details or bulk pricing, contact our sales team directly at sales02@thansiv.com or +91-8095406416.
Images are for illustration only; actual product may vary.
