LM35-10D0524-10 Power Converter
Dual output power converter for harsh environments with excellent EMC protection
- Type: Enclosed Type Dual Output
- Output Power: 35W
- Part Number: LM35-10D0524-10
- Mechanical Form: Enclosed
- IP Level: Non-Waterproof
- Output Voltage: 5V, 24V
- Output Current: 2.2A, 1A
Top Features
- Universal 85 - 264VAC or 120 - 373VDC Input voltage
- -30°C to +70°C Operating ambient temperature range
- Output short circuit, over-current, over-voltage protection
- High I/O isolation test voltage up to 3000VAC
LM35-10D0524-10 is designed to independently supply 2 different loads in the system, suitable for industrial control equipment, instrumentation, and smart home applications. It operates in a temperature range from -30°C to +70°C without the need for additional heat dissipation.
The converter's EMC immunity performance meets IEC61000 standard and emission standard CISPR32/EN55032, class B without external components, ensuring excellent EMC protection. It also complies with safety standards IEC/EN/UL62368/EN60335/GB4943.
The converter integrates various protection features and offers a high-performance to low-cost ratio, making it an ideal power solution for a variety of industries.
Detailed Specifications
- Input voltage range: 85-264VAC; 120-373VDC
- Inrush current (max.): Cold start, 50A at 230VAC
- Output voltage adjustable range: 4.75-5.5VDC
- Working current range: 0.22-4A, 0.1-1.3A
- Efficiency: 83%
- Max. capacitive load: 2200µF, 1000µF
- Input current (max.): 0.5A at 230VAC
- Short circuit protection: Hiccup, continuous, self-recovery
For more details or bulk pricing, contact our sales team at sales02@thansiv.com or +91-8095406416.

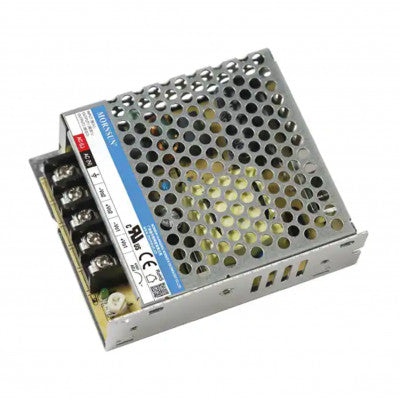

*Images are for illustration only; actual product may vary.
