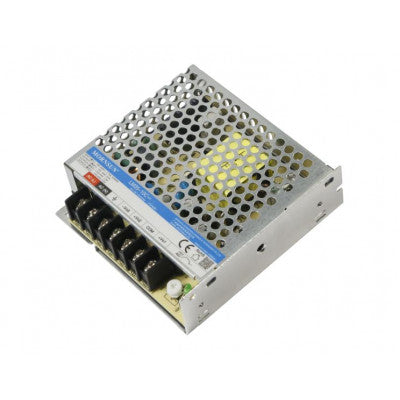

LM35-10C051515-10
Enclosed Type Triple Output Power Converter with High EMC Protection
- Type: Enclosed Type Triple Output
- Output Power: 35W
- Part Number: LM35-10C051515-10
- Mechanical Form: Enclosed
- IP Level: Non-Waterproof
- Output Voltage: 5V, 15V, -15V
- Output Current: 2.5A, 1A, 0.5A
Top Features:
- Universal 85 - 264VAC or 120 - 373VDC Input voltage
- Operating ambient temperature range: -30°C to +70°C
- High efficiency, reliability, and long lifetime
- Output short circuit, over-current, over-voltage protection
LM35-10C051515-10 is designed to independently supply 3 different loads in the system, suitable for harsh environments with an ambient temperature range from -30°C to +70°C. It meets EMC immunity requirements of IEC61000 standard and emission standard CISPR32/EN55032, class B without external components, ensuring excellent EMC protection. The product also complies with IEC/EN/UL62368, EN60335, GB4943 safety standards.
The converter integrates various protection features and offers a high-performance to low-cost ratio, making it an ideal power solution for industrial control equipment, instrumentation, smart home, and building equipment applications.
Detailed Specifications:
- Input voltage range: 85-264VAC; 120-373VDC
- Inrush current (max.): Cold start, 50A at 230VAC
- Output voltage adjustable range: 4.75-5.5V
- Working current range: 0.25-3.5A, 0.1-1.5A, 0.05-0.5A
- Efficiency at 230VAC: 81%
- Max. capacitive load: 2500µF, 1000µF, 470µF
- Input current (max.): 0.5A at 230VAC
- Short circuit protection: Hiccup, continuous, self-recovery
For more details or bulk pricing, contact our sales team directly at sales02@thansiv.com or +91-8095406416.
*Images are for illustration only; actual product may vary.
