LM324 Series Operational Amplifiers
High gain, single power supply operational amplifiers with wide voltage range
- Supply Voltage: 3V to 32V
- Differential Input Voltage: 32V
- Input Voltage Range: -0.3V to +32V
- Operating Temperature Range: -25°C to +85°C
- Storage Temperature Range: -65°C to +150°C
- Lead Temperature DIP: 260°C
Advantages:
- Eliminates need for dual supplies
- Four internally compensated op amps in a single package
- Allows directly sensing near GND and VOUT also goes to GND
- Compatible with all forms of logic
Features:
- Internally frequency compensated for unity gain
- Large DC voltage gain 100 dB
- Wide bandwidth (unity gain) 1 MHz (temperature compensated)
- Wide power supply range: Single supply 3V to 32V or dual supplies ±1.5V to ±16V
The LM324 series consists of four independent, high gain, internally frequency compensated operational amplifiers designed to operate from a single power supply over a wide range of voltages. It can also operate from split power supplies, with low power supply current drain independent of the power supply voltage magnitude.
Application areas include transducer amplifiers, DC gain blocks, and conventional op amp circuits easily implemented in single power supply systems. The LM324 series can be directly operated off the standard +5V power supply voltage used in digital systems, providing required interface electronics without additional ±15V power supplies.
In the linear mode, the input common-mode voltage range includes ground, and the output voltage can swing to ground even when operated from a single power supply voltage. The unity gain cross frequency and input bias current are temperature compensated.
For more details or bulk pricing, contact our sales team directly at sales02@thansiv.com or +91-8095406416.

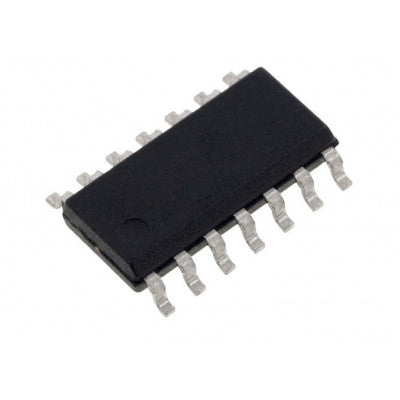

*Images are for illustration only; actual product may vary.
