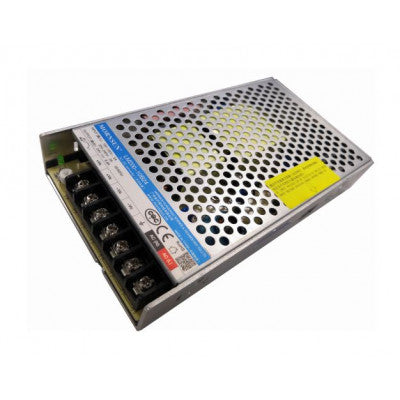

LM200-10B48
Enclosed AC-DC switching power supply with selectable AC input and high reliability.
- Type: Enclosed Type Single Output
- Output Power: 211.2W
- Series: LM200-10B
- Part Number: LM200-10B48
- Mechanical Form: Enclosed
- IP Level: Non-Waterproof
- Output Voltage: 48V
- Output Current: 4.4A
Features
- Selectable AC input range: 90 ~ 132VAC/180 ~ 264VAC
- DC input range: 240 ~ 373VDC(Switch in position of 230)
- Ultra low standby power consumption: < 0.75W @230VAC
- Operating ambient temperature range: -30°C ~ +70°C
These power supplies offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943 standards. They are widely used in industrial, LED, street light control, electricity, security, telecommunications, smart home, etc.
Detailed Specifications
- Input voltage range: 90-132VAC; 180-264VDC
- Inrush current (max.): Cold start, 80A at 230VAC
- Output voltage adjustable range: 43.2-52.8V
- Efficiency at 230VAC: 89.5%
- Max. capacitive load: 470µF
- Input current (max.): 3A at 230VAC
- Short circuit protection: Hiccup, continuous, self-recovery
- Over-current protection: 110%-150% Io, self-recovery
- Withstand voltage: 300VAC
- Working temperature: -30 - 70°C
- Connection: Terminal block
- Dimension (LxWxH): 179 x 99 x 30 mm
- Weight: 600 gm
- Cooling Method: Free air convection
- Case Material: Metal (AL1100, SGCC)
- MTBF: >300000 Hrs
- Safety Class: CLASS I
- Safety standards: Meet IEC/EN/UL62368/EN60335/GB4943
- EMC standards: CISPR32/EN55032 CLASS B, IEC/EN61000-3-2 CLASS A, IEC/EN 61000-4-3 10V/m
- Certification: CE, CQC
- Warranty: 3 years
*Images are for illustration only; actual product may vary.
