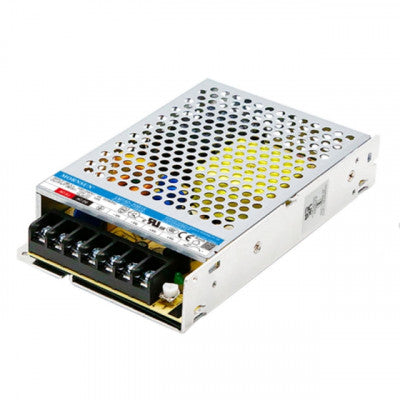

LM150-20B36 Enclosed AC-DC Switching Power Supply
Cost-effective, high efficiency power supply with universal AC input and dual-use DC input.
- Type: Enclosed Type Single Output
- Output Power: 154.8W
- Series: LM150-20B
- Part Number: LM150-20B36
- Mechanical Form: Enclosed
- IP Level: Non-Waterproof
- Output Voltage: 36V
- Output Current: 4.3A
Top Features:
- Universal 85 - 264VAC or 120 - 373VDC Input voltage
- Operating ambient temperature range: -30? to +70?
- Low standby power consumption, high efficiency
- High I/O isolation test voltage up to 4000VAC
LM150-20B36 is widely used in industrial, LED, street light control, electricity, security, telecommunications, smart home applications. It offers excellent EMC performance and complies with IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943 standards.
Detailed Specifications:
- Input voltage range: 85-264VAC; 120-373VDC
- Inrush current (max.): Cold start, 60A at 230VAC
- Output voltage adjustable range: 32.4-39.6V
- Efficiency at 230VAC: 88%
- Max. capacitive load: 1200µF
- Input current (max.): 2A at 230VAC
- Short circuit protection: Hiccup, continuous, self-recovery
- Over-current protection: 110%-150% Io, self-recovery
With safety features according to IEC/EN/UL62368, EN60335, GB4943, the LM150-20B36 has a withstand voltage of 300VAC and operates in temperatures ranging from -30°C to 70°C. It is designed with a metal case material (AL1100, SGCC) and offers a warranty of 3 years.
For more details or bulk pricing, contact our sales team directly at sales02@thansiv.com or +91-8095406416.
Images are for illustration only; actual product may vary.
