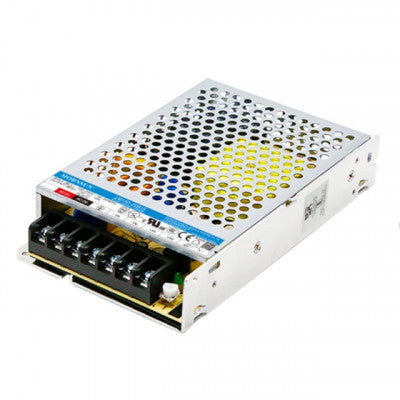

LM150-20B15 Enclosed AC-DC Switching Power Supply
Universal input, high efficiency, and excellent EMC performance
- Type: Enclosed Type Single Output
- Output Power: 150W
- Series: LM150-20B
- Part Number: LM150-20B15
- Mechanical Form: Enclosed
- IP Level: Non-Waterproof
- Output Voltage: 15V
- Output Current: 10A
Top Features
- Universal 85 - 264VAC or 120 - 373VDC Input voltage
- Operating ambient temperature range: -30? to +70?
- Low standby power consumption, high efficiency
- High I/O isolation test voltage up to 4000VAC
LM150-20B15 is widely used in industrial, LED, street light control, electricity, security, telecommunications, smart home, etc. It offers double or reinforced insulation and meets various standards including IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943.
Detailed Specifications
- Input voltage range: 85-264VAC; 120-373VDC
- Inrush current (max.): Cold start, 60A at 230VAC
- Output voltage adjustable range: 13.5-18V
- Efficiency at 230VAC: 87%
- Max. capacitive load: 6000µF
- Input current (max.): 2A at 230VAC
- Short circuit protection: Hiccup, continuous, self-recovery
- Over-current protection: 110%-150% Io, self-recovery
With safety features according to IEC/EN/UL62368, EN60335, GB4943, the LM150-20B15 also withstands 300VAC surge input for 5s and operates at altitudes up to 5000m.
For more details or bulk pricing, contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
*Images are for illustration only; actual product may vary.
