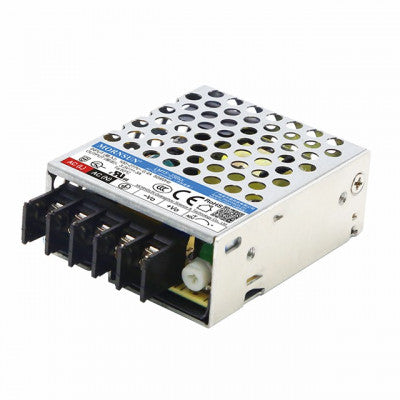

LM15-23B15 Series Enclosed AC-DC Switching Power Supply
Cost-effective, high efficiency power supply with universal AC input
- Type: Enclosed Type Single Output
- Output Power: 15W
- Series: LM15-23B
- Part Number: LM15-23B15
- Mechanical Form: Enclosed
- IP Level: Non-Waterproof
- Output Voltage: 15V
- Output Current: 1A
-
Features:
- 85 - 305VAC or 100 - 430VDC input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -30°C to +70°C
- Up to 83% efficiency
The LM15-23B15 series is one of Mornsun’s enclosed AC-DC switching power supplies, offering universal AC input and accepting DC input voltage. With low no-load power consumption and high reliability, these converters provide excellent EMC performance and meet various standards including IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, GB4943. Widely used in industrial, LED, street light control, security, telecommunications, and smart home applications.
Operating Conditions: Up to 5000m altitude
Protection Features: Output short circuit, over-current, over-voltage protection. Over-voltage class ? (designed to meet EN61558)
Download Datasheet: Download
