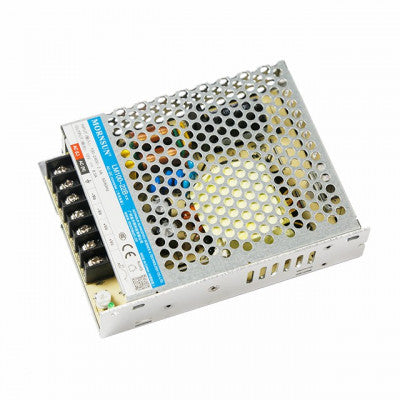

LM100-22B12 Series Enclosed AC-DC Switching Power Supply
Cost-effective, high efficiency power supply with dual AC/DC input compatibility
- Type: Enclosed Type Single Output
- Output Power: 100W
- Series: LM100-22B
- Part Number: LM100-22B12
- Mechanical Form: Enclosed
- IP Level: Non-Waterproof
- Output Voltage: 12V
- Output Current: 8.5A
Top Features:
- Accepts 165 - 264VAC or 200 - 370VDC input voltage
- Operating temperature range: -30? to +70?
- Low standby power consumption with high efficiency
- High I/O isolation test voltage up to 4000VAC
The LM100-22B12 series from Mornsun is a versatile enclosed AC-DC switching power supply that offers dual AC/DC input compatibility. It is designed to provide a cost-effective solution with low standby power consumption and high efficiency. The power supply features high reliability and double or reinforced insulation, making it suitable for various applications in industrial, LED, street light control, security, telecommunications, and smart home sectors.
These converters excel in EMC performance and comply with various international standards such as IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, IEC/EN60335, GB4943, and IEC/EN61558. With output short circuit, over-current, and over-voltage protection, the LM100-22B12 series ensures safe and reliable operation in diverse environments. Additionally, the power supply is designed to meet EN61558 standards for over-voltage class ? and can operate at altitudes up to 5000m. The product is backed by a 3-year warranty for added peace of mind.
For more details or bulk pricing inquiries, please contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
* Images are for illustration only; actual product may vary.
