LM100-20B36
Enclosed AC-DC switching power supply with universal input and high reliability.
- Type: Enclosed Type Single Output
- Output Power: 100.8W
- Series: LM100-20B
- Part Number: LM100-20B36
- Mechanical Form: Enclosed
- IP Level: Non-Waterproof
- Output Voltage: 36V
- Output Current: 2.8A
Features
- Universal 85 - 264VAC or 120 - 373VDC Input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -30°C to +70°C
- Low standby power consumption, high efficiency
This enclosed AC-DC switching power supply offers excellent EMC performance and meets various standards including IEC/EN61000-4, CISPR32/EN55032/IEC/UL/EN62368, EN60335, GB4943. It is widely used in industrial, LED, street light control, electricity, security, telecommunications, smart home, and more.
Detailed Specifications
- Input voltage range: 85-264VAC; 120-373VDC
- Inrush current (max.): Cold start, 65A at 230VAC
- Output voltage adjustable range: 32.4-39.6V
- Efficiency at 230VAC: 90%
- Max. capacitive load: 1000µF
- Input current (max.): 1.5A at 230VAC
- Short circuit protection: Hiccup, continuous, self-recovery
- Over-current protection: 110%-150% Io, self-recovery

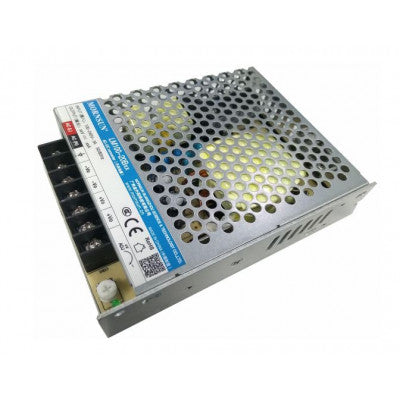

Images are for illustration only; actual product may vary.
