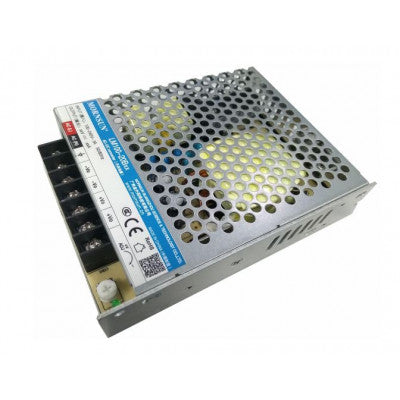

LM100-20B05
Enclosed AC-DC switching power supply with universal input and high reliability.
- Type: Enclosed Type Single Output
- Output Power: 90W
- Series: LM100-20B
- Part Number: LM100-20B05
- Mechanical Form: Enclosed
- IP Level: Non-Waterproof
- Output Voltage: 5V
- Output Current: 18A
Features
- Universal 85 - 264VAC or 120 - 373VDC Input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -30°C to +70°C
- Low standby power consumption, high efficiency
This enclosed AC-DC switching power supply is cost-effective and offers low no-load power consumption. It provides high efficiency and high reliability, making it suitable for industrial, LED, street light control, security, telecommunications, and smart home applications.
Detailed Specifications
- Input voltage range: 85-264VAC; 120-373VDC
- Inrush current (max.): Cold start, 65A at 230VAC
- Output voltage adjustable range: 4.5-5.5V
- Efficiency at 230VAC: 86%
- Max. capacitive load: 10000µF
- Input current (max.): 1.5A at 230VAC
- Short circuit protection: Hiccup, continuous, self-recovery
- Over-current protection: 110%-150% Io, self-recovery
With safety certifications according to IEC/EN/UL62368, EN60335, GB4943, this power supply also offers protection against output short circuit, over-current, over-voltage, and over-temperature. It can withstand 300VAC surge input for 5s and operates at altitudes up to 5000m.
- Connection: Terminal block
- Dimension (LxWxH): 129 x 97 x 30 mm
- Weight: 350 gm
- Cooling Method: Free air convection
The power supply is made of metal (AL1100, SGCC) and has a long MTBF of over 300,000 hours. It meets safety class CLASS I and various EMC standards.
