LM100-10D1224-20 Power Converter
Powerful dual output converter for industrial applications
- Type: Enclosed Type Dual Output
- Output Power: 96W
- Series: LM100-10D
- Part Number: LM100-10D1224-20
- Mechanical Form: Enclosed
- IP Level: Non-Waterproof
- Output Voltage: 12V, 24V
- Output Current: 4A, 2A
Top Features
- Universal 90 - 264VAC or 120 - 373VDC Input voltage
- Operating ambient temperature range: -30? to +70?
- High efficiency, reliability, and long lifetime
- Output short circuit, over-current, over-voltage protection
The LM100-10D1224-20 power converter design features two isolated output versions, suitable for supplying different loads in isolated systems. It can operate in harsh environments with an ambient temperature range from -30? to +70? without the need for additional heat dissipation.
The converter's EMC immunity performance meets the requirements of the IEC61000 standard and complies with emission standard CISPR32/EN55032, class B without external components, ensuring excellent EMC protection. It also meets safety standards such as IEC/EN/UL62368, EN60335, GB4943.
With integrated protection features and a high-performance to low-cost ratio, this converter provides an ideal power solution for industrial control equipment, instrumentation, smart home, and building equipment applications.
Detailed Specifications
- Input voltage range: 90-264VAC; 120-373VDC
- Inrush current (max.): Cold start, 50A at 230VAC
- Output voltage adjustable range: 4.75-5.5VDC
- Working current range: 0.4-6A, 0.2-3A
- Efficiency: 87%
- Max. capacitive load: 4000µF, 2000µF
- Input current (max.): 1.5A at 230VAC
- Short circuit protection: Hiccup, continuous, self-recovery
For more details or bulk pricing, contact our sales team at sales02@thansiv.com or +91-8095406416.

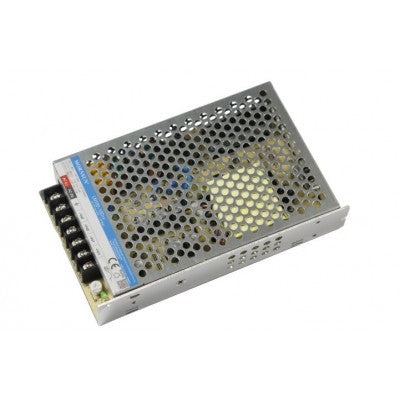

*Images are for illustration only; actual product may vary.
