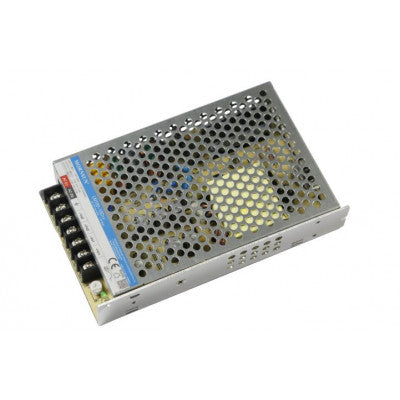

LM100-10D0524-30
Enclosed Type Dual Output Power Converter with High EMC Protection
- Type: Enclosed Type Dual Output
- Output Power: 97W
- Part Number: LM100-10D0524-30
- Mechanical Form: Enclosed
- IP Level: Non-Waterproof
- Output Voltage: 5V, 24V
- Output Current: 5A, 3A
Top Features:
- Universal 90 - 264VAC or 120 - 373VDC Input voltage
- Operating ambient temperature range: -30? to +70?
- High efficiency, reliability, and long lifetime
- Output short circuit, over-current, over-voltage protection
LM100-10D0524-30 is designed with two isolated output versions to independently supply different loads requiring isolation. It operates in harsh environments with an ambient temperature range from -30? to +70? without the need for additional heat dissipation. The converter's EMC immunity performance meets IEC61000 standard and emission standard CISPR32/EN55032, class B without external components, ensuring excellent EMC protection. Safety standards IEC/EN/UL62368, EN60335, GB4943 are also met. The converter integrates various protection features, offering a high-performance to low-cost ratio, making it an ideal power solution for industrial control equipment, instrumentation, smart home, and building equipment applications.
Detailed Specifications:
- Input voltage range: 90-264VAC; 120-373VDC
- Inrush current (max.): Cold start, 50A at 230VAC
- Output voltage adjustable range: 4.75-5.5VDC
- Working current range: 0.5-7A, 0.3-3.5A
- Efficiency: 85%
- Max. capacitive load: 5000µF, 3000µF
- Input current (max.): 1.5A at 230VAC
- Short circuit protection: Hiccup, continuous, self-recovery
For more details or bulk pricing, contact our sales team at sales02@thansiv.com or +91-8095406416.
*Images are for illustration only; actual product may vary.
