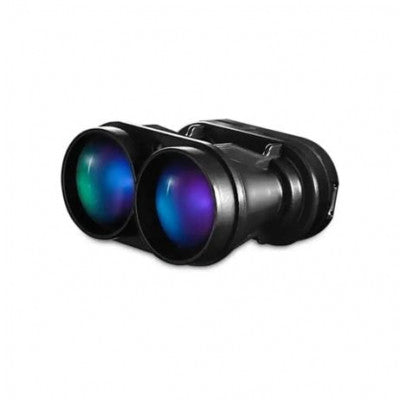

SF30/D microLiDAR
An advanced sensor with a 200m range for precise distance measurement and object detection.
- Measuring range: 0.2 - 200 m (80% reflective, large target)

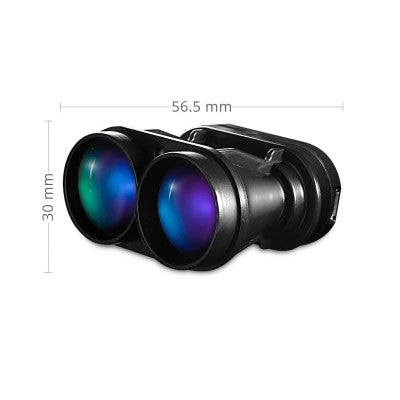

- Size: 30 x 56.5 x 50 millimeters
- Weight: 35 grams
- Measuring speed: 49 to 20000 readings per second (configurable)
- Interfaces: Serial, I2C, USB, Analog, and Alarm output
- Integration: User APIs, LightWare Studio

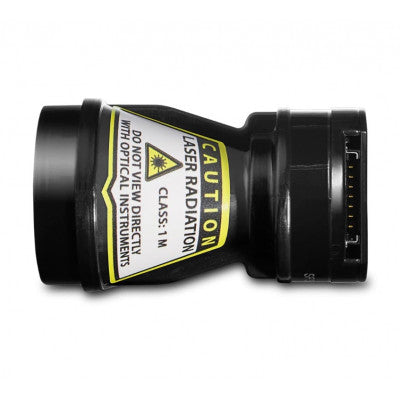

- Safety: Eye-safe laser emission Class 1M
- Environmental: Open frame, no IP rating

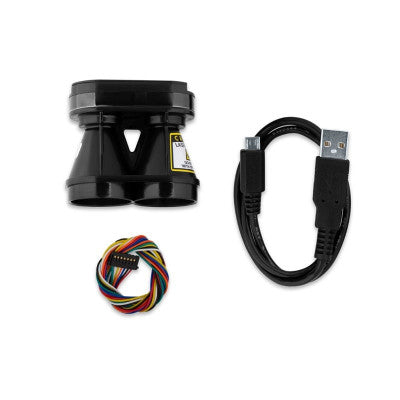

- Package Includes: 1 x SF30/D microLiDAR sensor, 1 x communications cable, 1 x USB to micro-USB cable
Features:
- Multiple return signals
- Signal strength
- Noise measurement
The Lightware SF30/D (200m) microLiDAR is an advanced sensor specifically developed for precise distance measurement and object detection in a compact form factor. With an impressive maximum range of 200 meters, it utilizes LiDAR technology to emit laser pulses and accurately calculate distances based on the reflected light. The SF30/D offers high-resolution measurements, ultra-fast response times, and a wide field of view, making it ideal for applications in autonomous vehicles, drones, surveillance systems, and industrial automation.
Applications: AGL (Altitude above ground level), Position hold, Terrain following, Detect and avoid, Assisted take-off and landing, Scanning
Useful Links:
- Product Guide
- Quickstart guide
- 3D CAD files: SF30/D housing assembly
- 3D CAD files: SF30/D mounting bracket
- Support software LightWare Studio
- SF30/D firmware release notes
- Accessories and options: SF30/D aluminum stand kit, SF30/D communication cable, SF30/D micro USB cable
*Images are for illustration only; actual product may vary.
