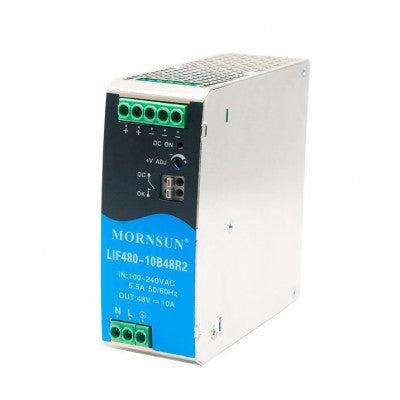

LIF480-10B48R2 Mornsun AC-DC Converter
A cost-effective, energy efficient green power supply solution for industrial control equipment.
- Type: DIN Rail Single Output
- Output Power: 480W
- Series: LIF480-10B
- Part Number: LIF480-10B48R2
- Mount: DIN-Rail
- IP Level: Non-Waterproof
- Output Voltage: 48V
- Output Current: 10A
Top Features:
- Universal 85-264VAC or 120-370VDC input voltage
- Operating ambient temperature range: -40°C to +70°C
- Efficiency up to 94.5%
- High I/O isolation test voltage up to 3000VAC
The LIF480-10B48R2 AC-DC converters from Mornsun offer a high level of stability and immunity to noise for industrial control equipment, machinery, and other industrial applications in harsh environments. These lightweight converters feature an extremely compact design and standard rail installation for space-saving. With good EMC performance, they are compliant with international standards for EMC and safety including IEC/EN/UL/BS EN 62368, UL61010, IS13252(Part1).
The converters accept AC or DC input (dual-use of the same terminal) and come with features like active PFC, high efficiency, low ripple & noise, and various protection mechanisms including output short circuit, over-current, over-voltage, over-temperature protection, and input under-voltage protection. They are DIN rail TS-35/7.5 or 15 mountable and have an ultra-slim design with a width of 48mm. Safety standards are met according to IEC/EN/UL/BS EN62368, UL61010, IS13252 (Part1).
For more details or bulk pricing inquiries, please contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
*Images are for illustration only; actual product may vary.
