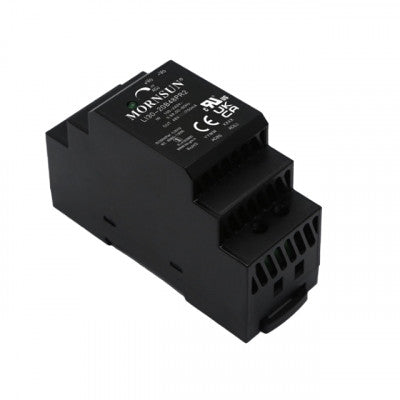

LI30-20B15PR2 AC-DC Converter
A cost-effective, energy efficient solution for standard DIN-rail mounting.
- Type: DIN Rail Single Output
- Output Power: 30W
- Series: LI30-20B
- Part Number: LI30-20B15PR2
- Mount: DIN-Rail
- IP Level: Non-Waterproof
- Output Voltage: 15V
- Output Current: 2A
Features:
- Universal 85 - 264VAC or 120 - 370VDC Input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -40°C to +70°C
- High I/O isolation test voltage up to 4000VAC
The LI30-20B15PR2 AC-DC converter from Mornsun offers a high level of stability and immunity to noise. It is compliant with international IEC62368 standards for EMC and safety approved to IEC/EN61000-4, CISPR32, EN55032, UL62368, IEC62368, and EN62368. These lightweight converters have an extremely compact design for space-saving and are ideal for industrial control equipment machinery and applications in harsh environments.
Detailed Specifications:
- Input voltage range: 85-264VAC; 120-370VDC
- Inrush current (max.): Cold start, 45A at 230VAC
- Output voltage adjustable range: 13.5-18V
- Efficiency at 230VAC: 89%
- Max. capacitive load: 5000µF
- Input current (max.): 0.5A at 230VAC
- Short circuit protection: Hiccup, continuous, self-recovery
- Over-current protection: ?120% Io, self-recovery
With low standby power consumption, high efficiency, and output short circuit, over-current, and over-voltage protection, the LI30-20B15PR2 is a reliable choice for various applications. It can withstand 300VAC surge input for 5s and is EN62368 safety approved.
Warranty:
- Warranty: 3 years
